Brand: Weidmuller
Weidmuller 1899380000 Terminal Block
Part Number # 1899380000
SKU # 2172516
Brand: Weidmuller
1899380000
Weidmuller 1899380000 Terminal Block
Part Number # 1899380000
SKU # 2172516
$420.50 / 50Each
Typical price:$484.10 / Each
Weidmuller 1899380000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1899380000 |
| SKU #: | 2172516 |
| Connector Type: | Clamping Yoke |
| Dimensions: | 10.5 mm H x 41.91 mm W x 19.1 mm D |
| Number of Positions: | 11 |
| Termination Type: | Female |
| UNSPSC: | 31163101 |
| UPC: | 04032248519286 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$420.50 / 50Each
Typical price:$484.10 / Each
Quantity:
- Weidmuller, 1899380000, PCB Plug-in Connector, Field Connection, Series: BC/SC 3.81, 11 Positions, 1 Rows, 0.15 in Pitch/Row Spacing, 28 to 16 AWG Wire, 300 V, Clamping Yoke Connector, Female Termination, Copper Alloy Contact, PA 66 GF 30 Housing Material, -50 to 120 deg C, Black, 10.5 mm H x 41.91 mm W x 19.1 mm D Dimensions
1899380000 Item Features
- Female socket connectors with clamping-yoke screw system for connecting wires
- Three wire-outlet directions are available and provide flexible connection-level design options
- There are three housing shapes, covering many different requirements, to choose from Weidmullers 3.81-mm-pitch (0.15 in) plug-in connectors are compatible with the layouts of customary connectors and offer space for labelling and coding
- 180 deg wire parallel to plugging direction
- 90 deg wire perpendicular and above plugging direction
- 270 deg wire perpendicular and below plugging direction
- Standard housing without flange
- Flange with screw (F)
- Flange featuring Weidmullers patented release latch (LR) for lock-and-release latching with no strain and no tools needed
1899380000 Standards
RoHS Compliant|CSA Certified|cURus Listed|EAC CertifiedSKU #2172516Part Number #1899380000UNSPSC31163101UPC04032248519286

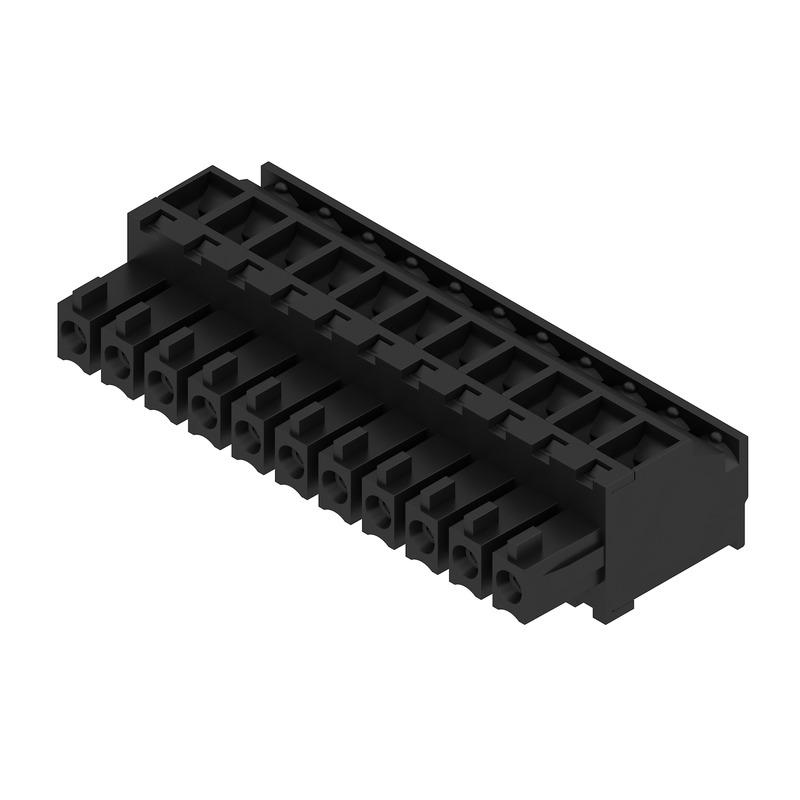

Image provided may only be a representation of final product and may include optional equipment
