Brand: Weidmuller

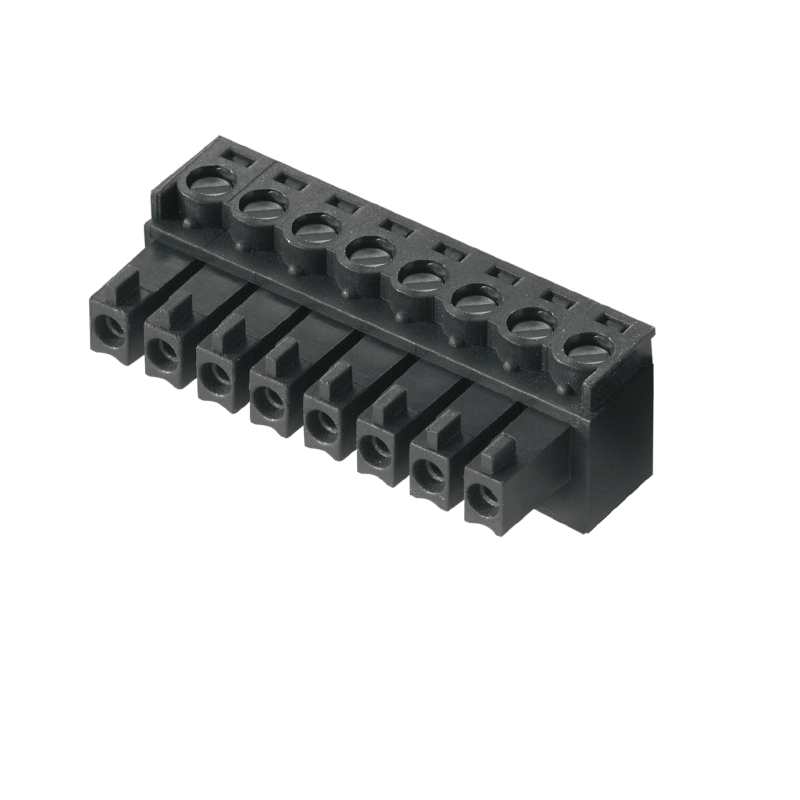

Weidmuller 1899400000 Terminal Block
Part Number # 1899400000
SKU # 2172517
Brand: Weidmuller
1899400000
Weidmuller 1899400000 Terminal Block
Part Number # 1899400000
SKU # 2172517
$404.50 / 50Each
Typical price:$465.40 / Each
Weidmuller 1899400000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1899400000 |
| SKU #: | 2172517 |
| Dimensions: | 11.1 mm H x 42 mm W x 16.1 mm D |
| Number of Positions: | 11 |
| Series: | BC/SC 3.81 Series |
| Housing material: | PA 66 GF 30 |
| UNSPSC: | 31163101 |
| UPC: | 04032248519309 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$404.50 / 50Each
Typical price:$465.40 / Each
Quantity:
- Weidmuller OMNIMATE Signal PCB Plug-In Connector, Wire Connection, Series: BC/SC 3.81 Series, 11 Positions, 1 Row, 3.81 mm Pitch/Row Spacing, 28 to 16 AWG Wire, 300/320 V, Female Plug Connector, 1.5 sq-mm Connector, Clamping Yoke Termination, Copper Alloy Contact, >=10^8 Ohm Insulation Resistance, PA 66 GF 30 Housing Material, -50 to 120 deg C, Black, 11.1 mm H x 42 mm W x 16.1 mm D Dimensions
1899400000 Item Features
- Female socket connectors with clamping yoke screw system for connecting wires
- 180 deg wire parallel to plugging direction
- Standard housing without flange
- Weidmuller 3.81 mm pitch (0.15 in) plug-in connectors are compatible with the layouts of customary connectors and offer space for labelling and coding
- 320 V IEC, 300 V UL
- https://youtu.be/Ifq_mdNjF4g
1899400000 Standards
RoHS Compliant|cULus File No. E60693 Recognized|IEC 60664-1, IEC 61984|CSA Certified|UL 94 V-0 Flammability Rating|CSA File No. 200039-1121690|EAC CertifiedSKU #2172517Part Number #1899400000UNSPSC31163101UPC04032248519309
Image provided may only be a representation of final product and may include optional equipment
