Part Number # 1912440000
SKU # 2221877
Image Disclaimers Message
1912440000

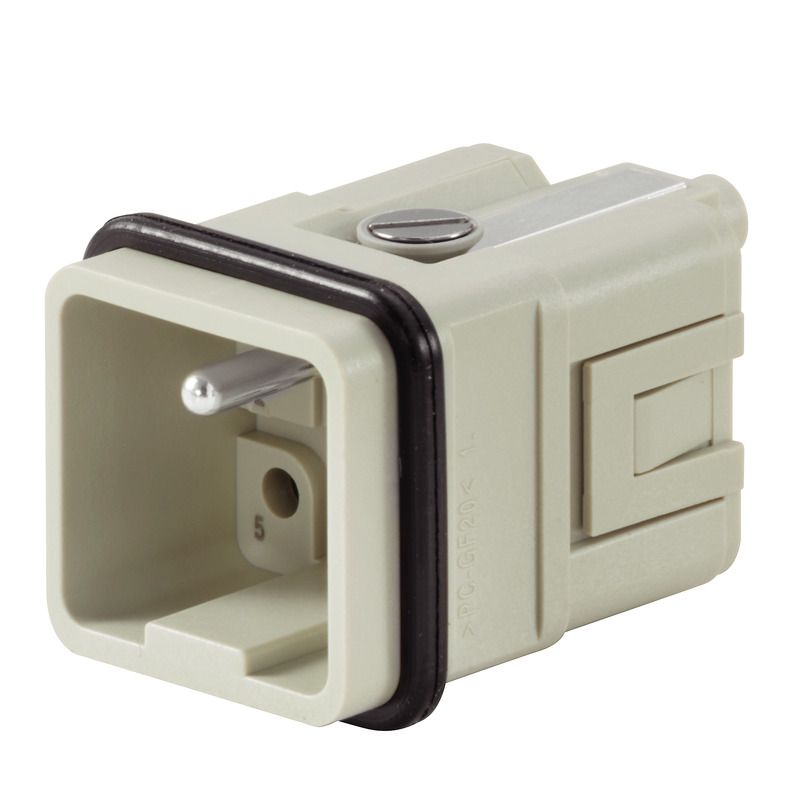

Weidmuller 1912440000 Contact Insert
Part Number # 1912440000
SKU # 2221877
Weidmuller 1912440000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1912440000 |
| SKU #: | 2221877 |
| Dimensions: | 40 mm H x 21 mm W x 21 mm D |
| Number of Positions: | 5+Ground |
| Series: | HQ Series |
| Specifications: | SZ 1, 250 V, 16 A |
| Suitable For Use With: | RockStar Heavy Duty Connector, RockStar® Heavy Duty Connector |
| Temperature Rating (Degrees F): | -40 to 125 deg C |
| Wire Size: | 20 to 12 AWG |
| Connection type: | Crimp/Male |
| Country of origin: | CN |
| Material: | PC Glass Fiber Reinforced |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151901 |
| UPC: | 04032248542031 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1912440000 Contact Insert
Brand: Weidmuller
Part Number: 1912440000
Weidmuller Contact Insert, Series: HQ Series, 5+Ground Positions, 20 to 12 AWG Wire, Crimp/Male, For Use With: RockStar Heavy Duty Connector, -40 to 125 deg C, SZ 1, 250 V, 16 A, PC Glass Fiber Reinforced, 40 mm H x 21 mm W x 21 mm D
Additional Description: WEID-1912440000 HDC HQ 5 MC CONTACT INSERT (INDUSTRY PLUG-IN CONNECTORS), MALE, 250 V, 16 A, NUMBER OF POLES: 5, CRIMP CONNECTION, SIZE: 1
Catalog Description: Insert for industrial plug-in connectors, consisting of contact element and insulating body.
1912440000 Includes
01912440000 Item Features
- A small unit that packs a big punch
- The electrical values speak for themselves
- Proven HE crimp contacts can also be used here
1912440000 Standards
CSA Certified|UL 94 V-0 Flammable Rating|DIN EN 61984|cULus Recognized|DNV-GL Approved|EAC Certified|UL File No. E92202|DVE ApprovedSKU #2221877Part Number #1912440000UNSPSC32151901UPC04032248542031
