Part Number # 1924490000
SKU # 2349195
Image Disclaimers Message
1924490000

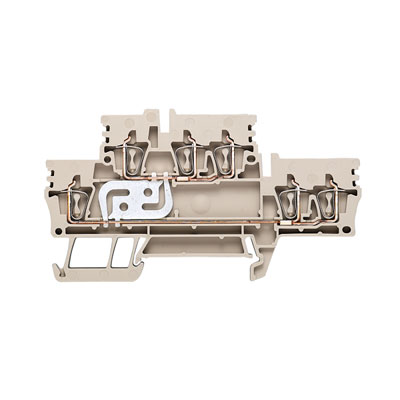

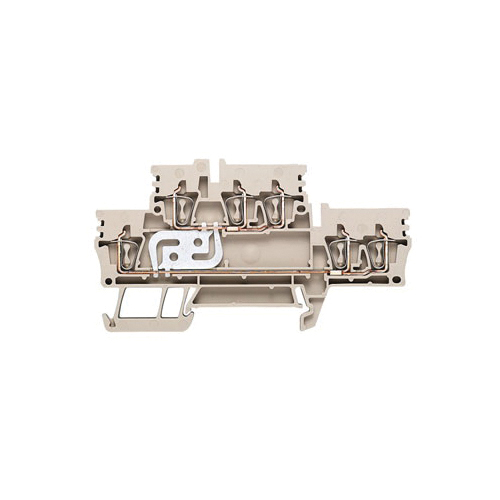

Weidmuller 1924490000 Klippon Terminal Block
Part Number # 1924490000
SKU # 2349195
$307.50 / 50Each
Typical price:$333.80 / Each
Weidmuller 1924490000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1924490000 |
| SKU #: | 2349195 |
| Amperage Rating: | 24 A |
| Dimensions: | 93 mm H x 5.1 mm W x 50.5 mm D |
| Series: | Z Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Type: | Double Tier Modular Vertical Cross Connected |
| Wire Size: | 2.5 sq-mm |
| Connection type: | Tension Clamp |
| Country of origin: | DE |
| Material: | Wemid |
| Mounting type: | Snap-On |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04032248563920 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$307.50 / 50Each
Typical price:$333.80 / Each
Quantity:
Weidmuller 1924490000 Klippon Terminal Block
Brand: Weidmuller
Part Number: 1924490000
Additional Description: WEID-1924490000 ZDK 2.5/3AN V MULTI-TIER MODULAR TERMINAL, TENSION-CLAMP CONNECTION, 2.5 MM, 800 V, 24 A, NUMBER OF LEVELS: 2, DARK BEIGE
Catalog Description: Terminal block with several levels for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity. Space-saving design.
1924490000 Item Features
- Spring connection with tension clamp technology
- Tension clamp technology is a universal contact system for all common conductor connection types
- Its fantastic level of flexibility makes the tension clamp a profitable alternative connection
1924490000 Standards
RoHS Compliant|UL File No. E60693|UL 94 V-0 Flammability Rating|CSA File No. 200039-1842498|cULus File No. E60693|ATEX File No. DEMKO16ATEX1729U|IECEX IECEXULD16.0025U|Marking EN 60079-7: Ex eb II C Gb|Ex 2014/34/EU label: II 2 G D|IEC 60947-7-1|CE Certified|EAC Certified|N INMETRO|UL/cULus File No. E60693|CSA File No. 200039-1842498|ATEX File No. DEMKO16ATEX1729U|IECEX File No. IECEXULD16.0025U|EN 60079-7: Ex eb II C Gb|Ex 2014/34/EU Label: II 2 G DSKU #2349195Part Number #1924490000UNSPSC39121410UPC04032248563920
