1934810000

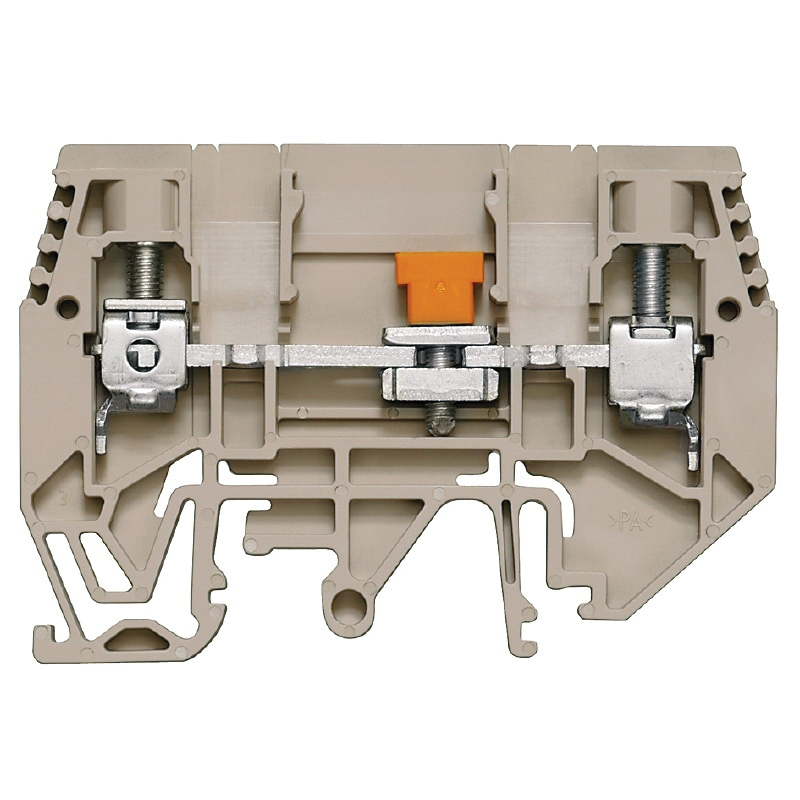

Weidmuller 1934810000 Electrical Terminal
Part Number # 1934810000
SKU # 2343640
$335.50 / 50Each
Typical price:$372.95 / Each
Weidmuller 1934810000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1934810000 |
| SKU #: | 2343640 |
| Dimensions: | 2.697 in H x 0.311 in W x 1.87 in D |
| UNSPSC: | 39121410 |
| UPC: | 04032248592166 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$335.50 / 50Each
Typical price:$372.95 / Each
Quantity:
- Weidmuller Disconnect Terminal Block, Series: W Series, 300 V AC, 45 A, 20 to 8 AWG Wire, 12 mm Wire Strip Length, Test Disconnect Terminal, 1 to 1.6 N-m Torque, Snap-Fit Mounting, Thread Connection, -50 to 120 deg C, Wemid, Dark Beige, 2.697 in H x 0.311 in W x 1.87 in D Dimensions
1934810000 Item Features
- Disconnection element, with sockets, one end without connector
- TS 35, TS 32 mounting rail
- Right open sides
- 0.8 x 4.0 mm blade
- 0.5 to 10 sq-mm minimum/maximum clamping range, rated connection
- On side connection direction
- 3 torque level with DMS electric screwdriver
- A5 gauge to IEC 60947-1
- M3.5 clamping screw
- 0.5 to 6 sq-mm minimum/maximum rated connection Wire connection cross-section, finely stranded with wire to end ferrules DIN 46228/1
- 0.5 to 10 sq-mm minimum/maximum rated connection wire connection cross-section, solid core
- 1.5 to 10 sq-mm minimum/maximum rated connection wire connection cross-section, stranded
- 0.78 mOhm volume-resistance according to IEC 60947-7-x
- 6 kV rated impulse withstand voltage
- 3 pollution severity
- 0.5 to 6 sq-mm minimum/maximum rated connection wire connection cross to section, finely stranded with wire to end ferrules and plastic collars DIN 46228/4
- UL 94 flammability rating V-0
- WTL 6/1 EN type
1934810000 Standards
UL File No. E60693 Listed|CE Certified|CSA Certified|EAC|RoHS CompliantSKU #2343640Part Number #1934810000UNSPSC39121410UPC04032248592166
Image provided may only be a representation of final product and may include optional equipment
