Part Number # 1936140000
SKU # 2343645
Image Disclaimers Message
1936140000

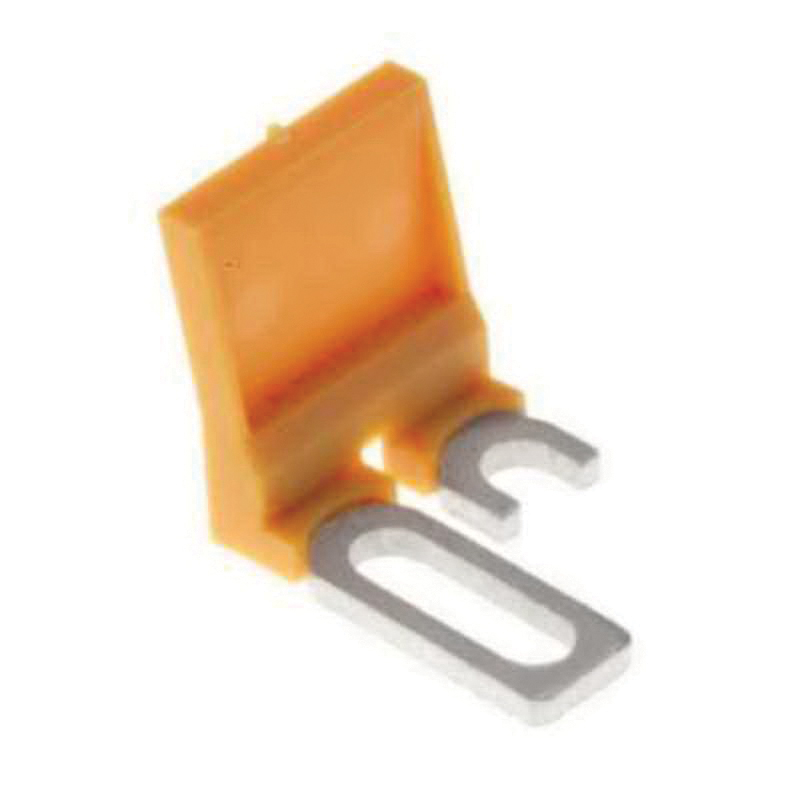

Weidmuller 1936140000 Cross-Connection Slider, Polyamide 66, 0.743 in H x 0.555 in W x 0.634 in D
Part Number # 1936140000
SKU # 2343645
Weidmuller 1936140000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1936140000 |
| SKU #: | 2343645 |
| Dimensions: | 0.743 in H x 0.555 in W x 0.634 in D |
| Finish: | Orange |
| Suitable For Use With: | WTL, WTD, WTQ Series Terminals |
| Country of origin: | DE |
| Material: | Polyamide 66 |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04032248605866 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1936140000 Cross-Connection Slider, Polyamide 66, 0.743 in H x 0.555 in W x 0.634 in D
Brand: Weidmuller
Part Number: 1936140000
Weidmuller Cross-Connection Slider, For Use With: WTL, WTD, WTQ Series Terminals, Polyamide 66, Orange, 0.743 in H x 0.555 in W x 0.634 in D
Additional Description: WEID-1936140000 WKS 2/2 CROSS-CONNECTOR (TERMINAL), WHEN SCREWED IN, NUMBER OF POLES: 2, PITCH IN MM: 7.90, INSULATED: YES, 41 A, ORANGE CROSS-CONNECTION SLIDER, x 14.1
Catalog Description: Cross-connector for feed-through terminal blocks for potential distribution or transmission of signals.
1936140000 Includes
01936140000 Item Features
- -50 to 100 deg C operating temperature
- UL 94 flammability rating V-2
- Plugged fixing
- Clamped/direct mounting
- Cross-connection slider x 14.1
- 7.9 mm pitch
- WKS 2/2 type
1936140000 Standards
RoHS CompliantSKU #2343645Part Number #1936140000UNSPSC39121410UPC04032248605866
