1940210000

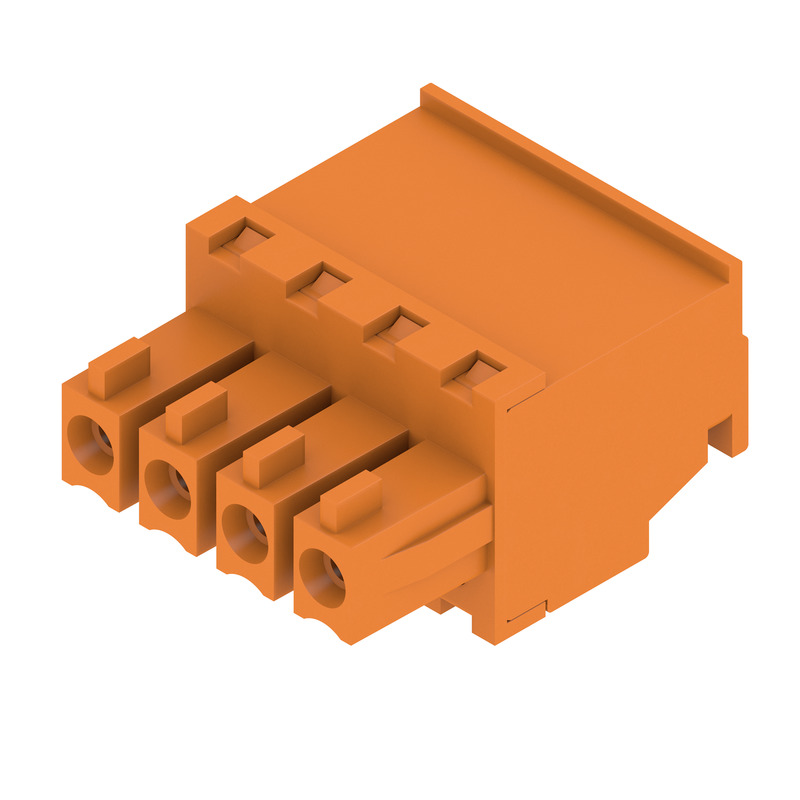

Weidmuller 1940210000 Terminal Block
Part Number # 1940210000
SKU # 2222588
$153.00 / 50Each
Typical price:$176.05 / Each
Weidmuller 1940210000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1940210000 |
| SKU #: | 2222588 |
| Dimensions: | 10.5 mm H x 15.24 mm W x 19.1 mm D |
| Series: | BC/SC 3.81 Series |
| Housing material: | PA 66 GF 30 |
| UNSPSC: | 31163101 |
| UPC: | 04032248656622 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$153.00 / 50Each
Typical price:$176.05 / Each
Quantity:
- Weidmuller OMNIMATE Signal PCB Plug-In Connector, Wire Connection, Series: BC/SC 3.81 Series, 4 Positions, 1 Row, 3.81 mm Pitch/Row Spacing, 28 to 16 AWG Wire, 300/320 V, Female Plug Connector, 1.5 sq-mm Connector, Clamping Yoke Termination, Copper Alloy Contact, >=10^8 Ohm Insulation Resistance, PA 66 GF 30 Housing Material, -50 to 120 deg C, Orange, 10.5 mm H x 15.24 mm W x 19.1 mm D Dimensions
1940210000 Item Features
- Female socket connectors with clamping yoke screw system for connecting wires
- 270 deg wire perpendicular and below plugging direction
- Standard housing without flange
- Weidmuller 3.81 mm pitch (0.15 in) plug-in connectors are compatible with the layouts of customary connectors and offer space for labelling and coding
- 320 V IEC, 300 V UL
- https://youtu.be/-9mXkQKMYls
1940210000 Standards
RoHS Compliant|cULus File No. E60693 Recognized|IEC 60664-1, IEC 61984|CSA Certified|UL 94 V-0 Flammability Rating|CSA File No. 200039-1121690|EAC CertifiedSKU #2222588Part Number #1940210000UNSPSC31163101UPC04032248656622
Image provided may only be a representation of final product and may include optional equipment
