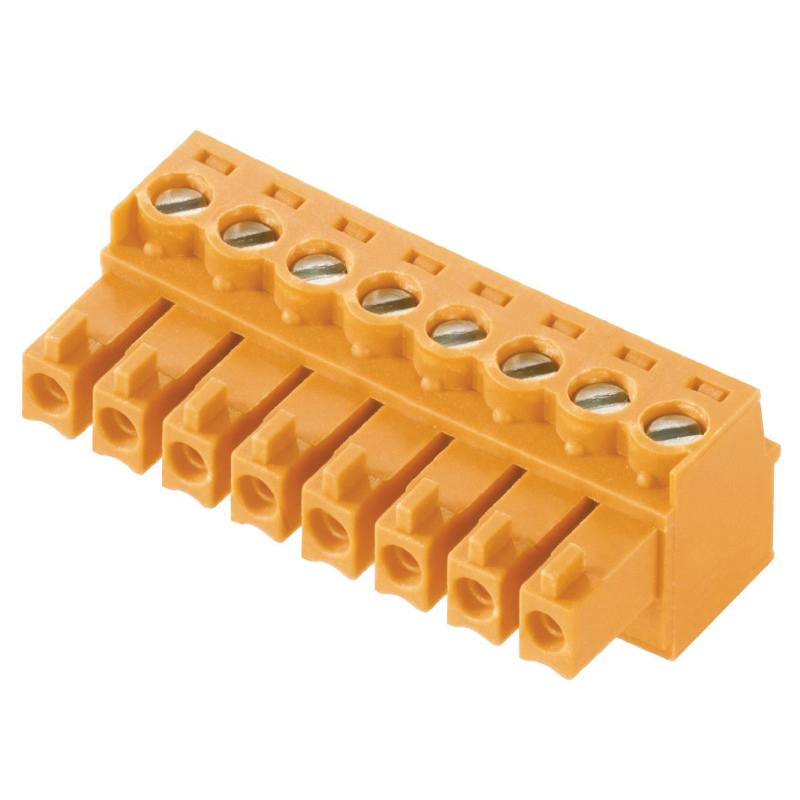

Weidmuller 1940760000 Omnimate Signal Plug-In PCB Connector, 1 Row, 0.15 in, 28 to 16 AWG Wire
Part Number # 1940760000
SKU # 2277558
Weidmuller 1940760000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1940760000 |
| SKU #: | 2277558 |
| Connector Type: | Female |
| Dimensions: | 0.45 in L |
| Series: | Omnimate Signal |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Termination Type: | Clamping Yoke Screw |
| Type: | Plug-In |
| Wire Size: | 28 to 16 AWG |
| Color: | Orange |
| Contact material: | Cu-Leg |
| Country of origin: | CN |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163101 |
| UPC: | 04032248656073 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1940760000 Omnimate Signal Plug-In PCB Connector, 1 Row, 0.15 in, 28 to 16 AWG Wire
Brand: Weidmuller
Part Number: 1940760000
Weidmuller PCB Connector, Plug-In, Series: Omnimate Signal, 1 Rows, 0.15 in Pitch/Row Spacing, 28 to 16 AWG Wire, 50 VAC, Female Connector, Clamping Yoke Screw Termination, Cu-Leg Contact, -50 to 120 deg C, Orange, 0.45 in L Dimensions
Additional Description: WEID-1940760000 BCZ 3.81/05/180 SN OR BX PCB PLUG-IN CONNECTOR (WIRE CONNECTION), 3.81 MM, NUMBER OF POLES: 5, CLAMPING YOKE CONNECTION
Catalog Description: Pluggable PCB connection with innovative connection technology for safe and intuitive handling.
1940760000 Item Features
- Glass fiber reinforced polyamide insulating material
- Tinned contact surface
- UL 94 flammability rating V-0
- 180 deg conductor outlet direction
- 5-poles
- Female header with flange
- RAL 2000 orange color
- BCZ 3.81/05/180 SN OR BX type
- https://www.youtube.com/watch?v=Ifq_mdNjF4g&feature=youtu.be
1940760000 Standards
UL File No. E60693 Listed|CSA Certified|RoHS CompliantSKU #2277558Part Number #1940760000UNSPSC31163101UPC04032248656073
