1943190000
Weidmuller 1943190000 Terminal Block
Part Number # 1943190000
SKU # 2262329
$107.64 / 78Each
Typical price:$123.63 / Each
Weidmuller 1943190000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1943190000 |
| SKU #: | 2262329 |
| Connector Type: | Male Header |
| Dimensions: | 12.4 mm H x 22.03 mm W x 7.1 mm D |
| Number of Positions: | 4 |
| Series: | BC/SC 3.81 Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Termination Type: | THT Solder |
| Type: | Board Connection |
| Contact material: | Copper alloy |
| Country of origin: | CN |
| Housing material: | PA GF |
| Mounting type: | PCB |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163101 |
| UPC: | 04032248654406 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$107.64 / 78Each
Typical price:$123.63 / Each
Quantity:
- Weidmuller OMNIMATE Signal PCB Plug-In Connector, Board Connection, Series: BC/SC 3.81 Series, 4 Positions, 1 Row, 3.81 mm Pitch/Row Spacing, PCB Mounting, 300/320 V, Male Header Connector, THT Solder Termination, Copper Alloy Contact, PA GF Housing Material, -50 to 120 deg C, Orange, 12.4 mm H x 22.03 mm W x 7.1 mm D Dimensions
1943190000 Item Features
- The SC pin header has a perpendicular (standing) plugging direction in relation to the PCB
- Weidmuller 3.81 mm pitch (0.15 in) plug-in connectors are compatible with the layouts of standard connectors and offer space for labelling and coding
- 320 V IEC, 300 V UL
- https://youtu.be/Ifq_mdNjF4g
1943190000 Standards
RoHS Compliant|IEC 60664-1, IEC 61984|cULus File No. E60693 Recognized|UL 1059|CSA Certified|UL 94 V-0 Flammability Rating|EAC CertifiedSKU #2262329Part Number #1943190000UNSPSC31163101UPC04032248654406

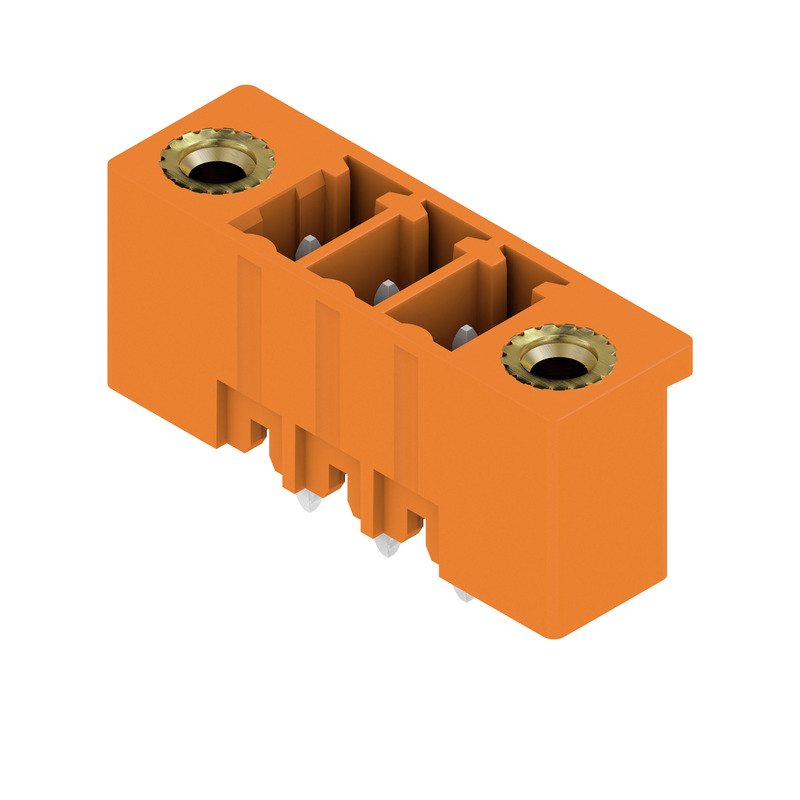

Image provided may only be a representation of final product and may include optional equipment
