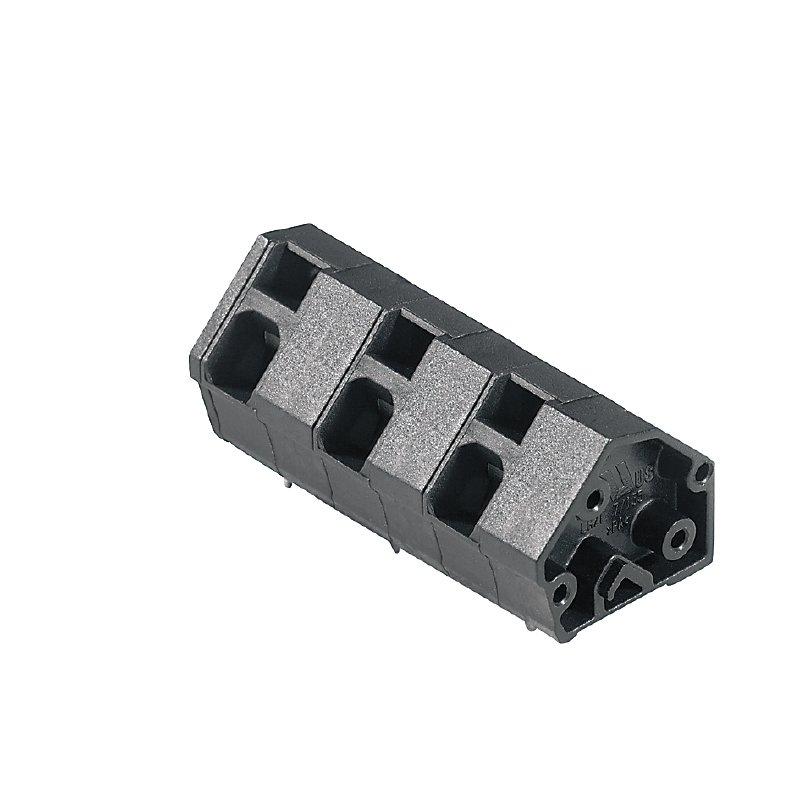

Weidmuller 1953200000 Printed Circuit Board Pcb Press Fit Header Connector
Part Number # 1953200000
SKU # 42327
1953200000
Weidmuller 1953200000 Printed Circuit Board Pcb Press Fit Header Connector
Part Number # 1953200000
SKU # 42327
$283.00 / 100Each
Typical price:$325.90 / Each
Weidmuller 1953200000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1953200000 |
| SKU #: | 42327 |
| Amperage Rating: | 15/24 A |
| Dimensions: | 16.48 mm H x 22.5 mm W x 14.5 mm D |
| Number of Poles: | 2 |
| Series: | LMZF Series |
| Spacing: | 10 mm |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Terminal Type: | THT Solder |
| Wire Size: | 26 to 14 AWG |
| Connection type: | Tension Clamp |
| Country of origin: | CN |
| Material: | Wemid |
| Mounting type: | Through-Hole |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121443 |
| UPC: | 04032248661398 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$283.00 / 100Each
Typical price:$325.90 / Each
Quantity:

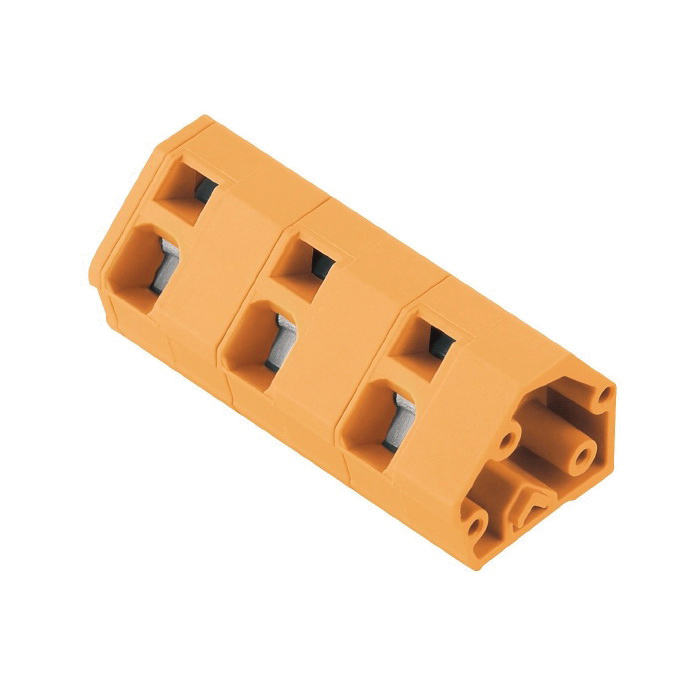

- Weidmuller OMNIMATE Signal PCB Terminal Block, Series: LMZF Series, 300/1000 V, 15/24 A, 2 Pole, 26 to 14 AWG Wire, 6 mm Wire Strip Length, THT Solder Terminal, 10 mm Spacing, Through-Hole Mounting, Tension Clamp Connection, -50 to 120 deg C, Wemid, Orange, 16.48 mm H x 22.5 mm W x 14.5 mm D Dimensions
1953200000 Item Features
- The compact installation terminal for the standard wire cross-section size of 2.5 sq-mm
- Tension clamp connection with a 135 deg outlet direction, in variable pitch: 10 to 10.16 mm (1 part with 2 pitches)
- Temperature-resistant - long term resistance up to 120 deg C provided by high performance Wemid insulation material
- 1000 V IEC, 300 V UL
- 24 A IEC, 15 A IEC
- https://youtu.be/LfO55jVupjE
1953200000 Standards
RoHS Compliant|cULus File No. E60693 Recognized|EAC Certified|UL 94 V-0 Flammability Rating|UL 1059SKU #42327Part Number #1953200000UNSPSC39121443UPC04032248661398
Image provided may only be a representation of final product and may include optional equipment
