1954050000
Weidmuller 1954050000 Terminal Blocks
Part Number # 1954050000
SKU # 2405936
$34.98 / 250Each
Typical price:$37.50 / Each
Weidmuller 1954050000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1954050000 |
| SKU #: | 2405936 |
| Connector Size: | 0.75 sq-mm |
| Dimensions: | 16 mm H x 120 mm W x 20.1 mm D |
| UNSPSC: | 39121410 |
| UPC: | 04032248632923 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$34.98 / 250Each
Typical price:$37.50 / Each
Quantity:
- Weidmuller OMNIMATE Signal PCB Plug-In Connector, High Current Wire Connection, Series: BL/SL 5.00 Series, 24 Positions, 1 Row, 5 mm Pitch/Row Spacing, 26 to 12 AWG Wire, 300/400 V, Female Plug Connector, 0.75 sq-mm Connector, Clamping Yoke Termination, Copper Alloy Contact, >=10^8 Ohm Insulation Resistance, PBT Housing Material, -50 to 100 deg C, Orange, 16 mm H x 120 mm W x 20.1 mm D Dimensions
1954050000 Application
For Phoenix terminal blocks1954050000 Item Features
- Female plug with clamping yoke screw system for connecting wires with straight (180 deg) outlet direction
- The female connectors provide space for labelling and can be coded
- Fastened by means of a flange or release latch
- The also provide an integrated plus/minus screw, protection against faulty insertion of the wire and they are delivered with open clamping yokes
- 400 V IEC, 300V UL
- https://youtu.be/BWySWo-wzgE
1954050000 Standards
RoHS Compliant|cULus File No. E60693 Recognized|IEC 60664-1, IEC 61984|UL 94 V-0 Flammability Rating|EAC CertifiedSKU #2405936Part Number #1954050000UNSPSC39121410UPC04032248632923

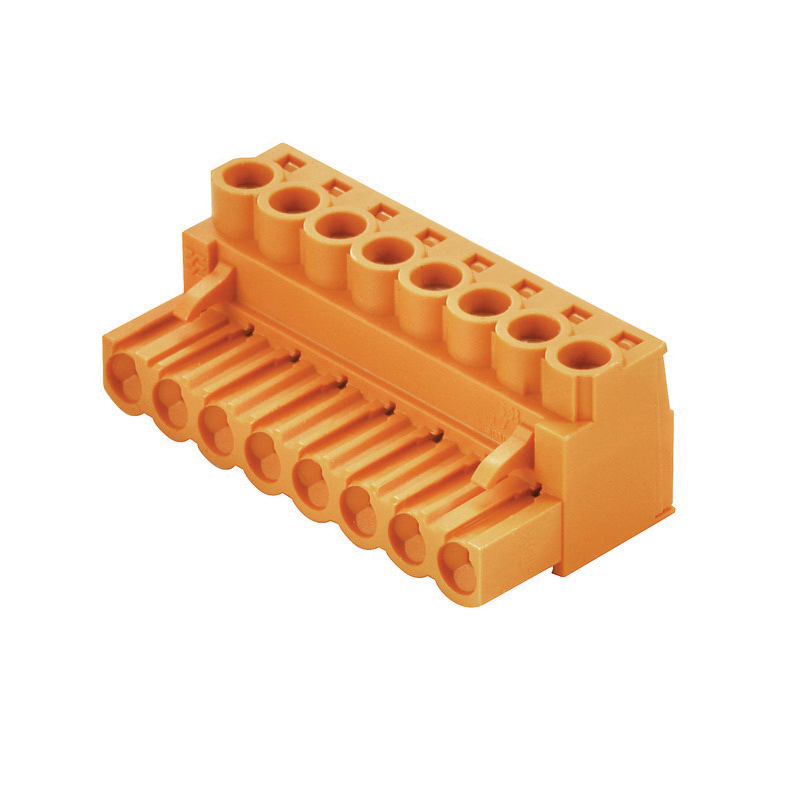

Image provided may only be a representation of final product and may include optional equipment
