1955510000
Weidmuller 1955510000 Terminal Block
Part Number # 1955510000
SKU # 2207939
$242.76 / 42Each
Typical price:$279.55 / Each
Weidmuller 1955510000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1955510000 |
| SKU #: | 2207939 |
| Connector Size: | 0.75 sq-mm |
| Dimensions: | 16 mm H x 40 mm W x 20.1 mm D |
| UNSPSC: | 31163101 |
| UPC: | 04032248634002 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$242.76 / 42Each
Typical price:$279.55 / Each
Quantity:

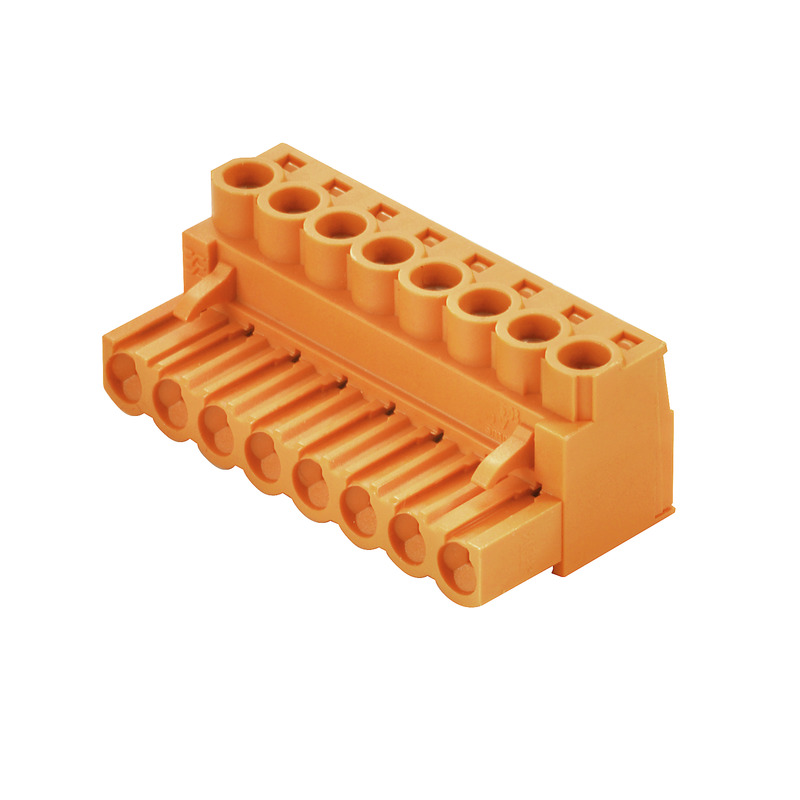

- Weidmuller OMNIMATE Signal PCB Plug-In Connector, High Current Wire Connection, Series: BL/SL 5.00 Series, 8 Positions, 1 Row, 5 mm Pitch/Row Spacing, 26 to 12 AWG Wire, 300/400 V, Female Plug Connector, 0.75 sq-mm Connector, Clamping Yoke Termination, Copper Alloy Contact, >=10^8 Ohm Insulation Resistance, PBT Housing Material, -50 to 100 deg C, Black, 16 mm H x 40 mm W x 20.1 mm D Dimensions
1955510000 Item Features
- Female plug with clamping yoke screw system for connecting wires with straight (180 deg) outlet direction
- The female connectors provide space for labelling and can be coded
- Fastened by means of a flange or release latch
- The also provide an integrated plus/minus screw, protection against faulty insertion of the wire and they are delivered with open clamping yokes
- 400 V IEC, 300V UL
- https://youtu.be/Ifq_mdNjF4g
1955510000 Standards
RoHS Compliant|cULus File No. E60693 Recognized|IEC 60664-1, IEC 61984|CSA Certified|UL 94 V-0 Flammability Rating|CSA File No. 200039-1121690|EAC CertifiedSKU #2207939Part Number #1955510000UNSPSC31163101UPC04032248634002
Image provided may only be a representation of final product and may include optional equipment
