Part Number # 1963590000
SKU # 2141797
Image Disclaimers Message
1963590000

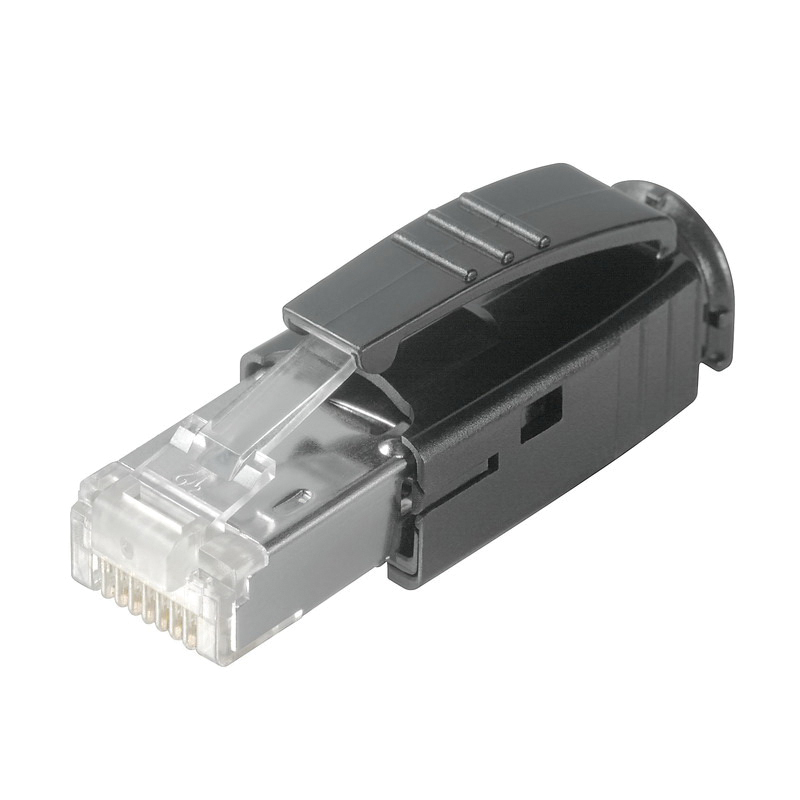

Weidmuller 1963590000 Modular Plug
Part Number # 1963590000
SKU # 2141797
$40.90 / 10Each
Typical price:$42.10 / Each
Weidmuller 1963590000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1963590000 |
| SKU #: | 2141797 |
| Cable Outer Diameter: | 0.36 to 0.61 mm |
| Conductor Size: | 27 to 24 AWG |
| Series: | IE-Line |
| Temperature Rating (Degrees F): | -40 to 70 deg C |
| Termination Type: | IDC |
| Cable type: | Round/Solid/Stranded |
| Color: | Translucent Clear |
| Country of origin: | TW |
| Dielectric strength: | <=1000 VDC Contact, <=1500 VDC Contact/Shield |
| Insulation resistance: | 500 MOhm |
| Material: | Polycarbonate |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 43223305 |
| UPC: | 04032248645695 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$40.90 / 10Each
Typical price:$42.10 / Each
Quantity:
Weidmuller 1963590000 Modular Plug
Brand: Weidmuller
Part Number: 1963590000
Weidmuller Modular Plug, Series: IE-Line, Round/Solid/Stranded Cable, 0.36 to 0.61 mm OD Cable, 27 to 24 AWG Conductor, IDC Termination, 500 MOhm Insulation Resistance, <=1000 VDC Contact, <=1500 VDC Contact/Shield Dielectric Strength, -40 to 70 deg C, Translucent Clear, Polycarbonate
Additional Description: WEID-1963590000 IE-PS-RJ45-TH-BK RJ45 CONNECTOR, IP20, CONNECTION 1: RJ45, CONNECTION 2: CRIMPAWG 27...AWG 24 RJ45 CRIMP
Catalog Description: RJ45 connector for custom assembly
1963590000 Includes
01963590000 Item Features
- <=20 mOhm contact resistance
- 0.85 - 1.05 mm insulation cross section
- Phosphorus bronze contact
- Gold plated contact finish
- 5 - 7.3 mm sheath Dia
- 0.5 mm brass, 2 um nickel shielding
- IP20 protection
- 750 plugging cycles
- 8p8c (RJ45, Ethernet) positions
- Plug connector
- IE-PS-RJ45-TH-BK type
1963590000 Standards
IEC 60603-7-51|cURus E316369|RoHS CompliantSKU #2141797Part Number #1963590000UNSPSC43223305UPC04032248645695
