1969950000
Weidmuller 1969950000 Quick Disconnects
Part Number # 1969950000
SKU # 2392738
$147.01 / 50Each
Typical price:$169.25 / Each
Weidmuller 1969950000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1969950000 |
| SKU #: | 2392738 |
| Connector Size: | 0.34 sq-mm |
| Dimensions: | 7.9 mm H x 19.14 mm W x 22 mm D |
| Series: | BC/SC 3.81 |
| Wire Size: | 26 to 16 AWG |
| Housing material: | PA 66 GF 30 |
| UNSPSC: | 31163101 |
| UPC: | 04032248679546 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$147.01 / 50Each
Typical price:$169.25 / Each
Quantity:
- Weidmuller OMNIMATE Signal PCB Plug-In Connector, Wire Connection, Series: BC/SC 3.81, 5 Positions, 1 Rows, 3.81 mm Pitch/Row Spacing, 26 to 16 AWG Wire, 300/320 V, Female Plug Connector, 0.34 sq-mm Connector, Push-In/Tension Clamp Termination, Copper Alloy Contact, >=10^8 Ohm Insulation Resistance, PA 66 GF 30 Housing Material, -50 to 120 deg C, Black, 7.9 mm H x 19.14 mm W x 22 mm D Dimensions
1969950000 Item Features
- Push-in Weidmuller innovative connection system simplifies the wire connection process
- High packaging density due to very low component height, simply insert the prepared wire finished
- High component density with the compact SCDN/SCDN-THR 2-tier pin header
- Simplified processing due to integrated push buttons for opening the clamping unit
- Intuitive handling since the wire entry area and handling area are clearly separated
- Tool-free locking and releasing when using Weidmuller patented release latch (LR)
- The Weidmuller plug-in connectors, pitch 3.81 mm (0.15 in), are compatible with the layout of customary plug-in connectors, can be coded and provide space for printing
- 320 V IEC, 300 V UL
- https://youtu.be/iefvOaQEGTI
1969950000 Standards
RoHS Compliant|cULus File No. E60693 Recognized|IEC 60664-1, IEC 61984|CSA Certified|UL 94 V-0 Flammability Rating|CSA File No. 200039-1121690|EAC CertifiedSKU #2392738Part Number #1969950000UNSPSC31163101UPC04032248679546

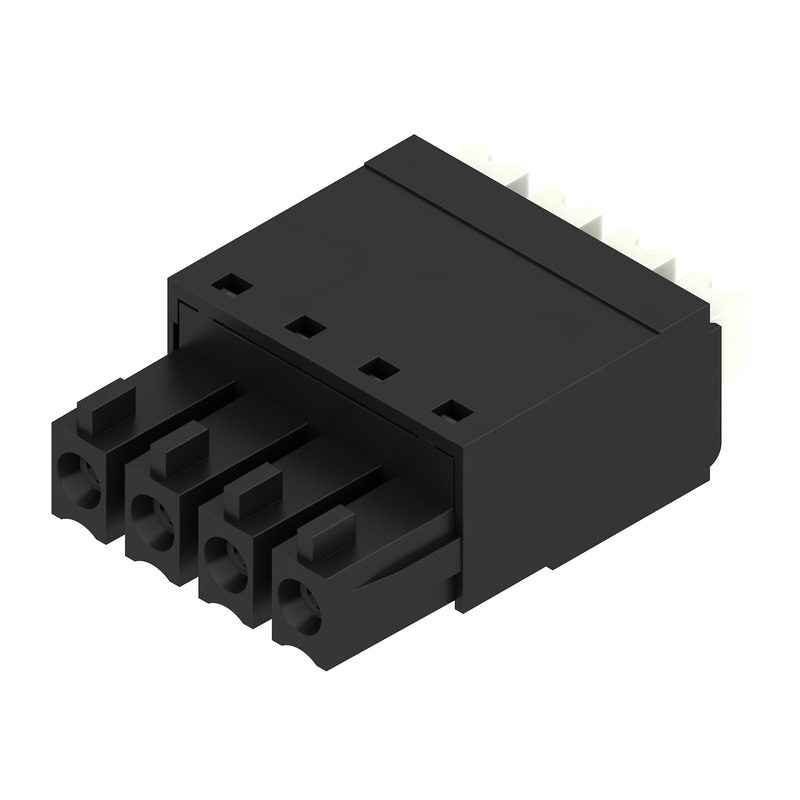

Image provided may only be a representation of final product and may include optional equipment
