1970080000
Weidmuller 1970080000 Terminal Block
Part Number # 1970080000
SKU # 2246256
$374.50 / 50Each
Typical price:$430.85 / Each
Weidmuller 1970080000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1970080000 |
| SKU #: | 2246256 |
| UNSPSC: | 31163101 |
| UPC: | 04032248679492 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$374.50 / 50Each
Typical price:$430.85 / Each
Quantity:
- Weidmuller OMNIMATE Signal PCB Plug-In Connector, Closed Wire Connection, Series: BC/SC 3.81 Series, 8 Positions, 1 Row, 3.81 mm Pitch/Row Spacing, DIN Rail Mounting, 28 to 16 AWG Wire, 300/320 V, Male Plug Connector, Clamping Yoke Termination, Copper Alloy Contact, >=10^8 Ohm Insulation Resistance, PA 66 GF 30 Housing Material, -50 to 120 deg C, Black, 11.1 mm H x 18.4 mm D Dimensions
1970080000 Item Features
- The inverted SCZ pin plug with clamping yoke screw connection is designed for straight wire connections in 3.81 mm pitch
- For wire to wire connections together with the BCZ
- As a mating plug for the touch-safe BCL socket block on the PCB
- The SCZ provides space for labeling and can be coded
- Without flange
- 320 V IEC, 300 V UL
- https://youtu.be/Ifq_mdNjF4g
1970080000 Standards
RoHS Compliant|ETIM 6.0 EC002638|ETIM 7.0 EC002638|eClass 9.0 27-44-03-09|eClass 9.1 27-44-03-09|eClass 10.0 27-44-03-09|CSA Certified|cULus Recognized|EAC Certified|DIN 5264|REACH SVHC Lead 7439-92-1|UL 94 V-0 Flammability RatingSKU #2246256Part Number #1970080000UNSPSC31163101UPC04032248679492

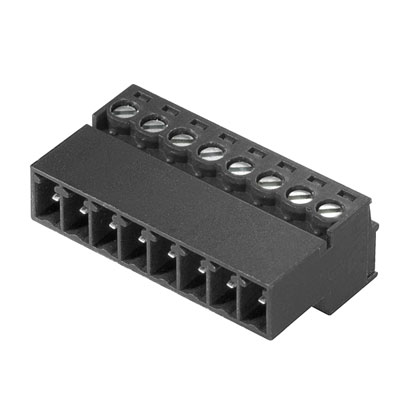

Image provided may only be a representation of final product and may include optional equipment
