Brand: Weidmuller

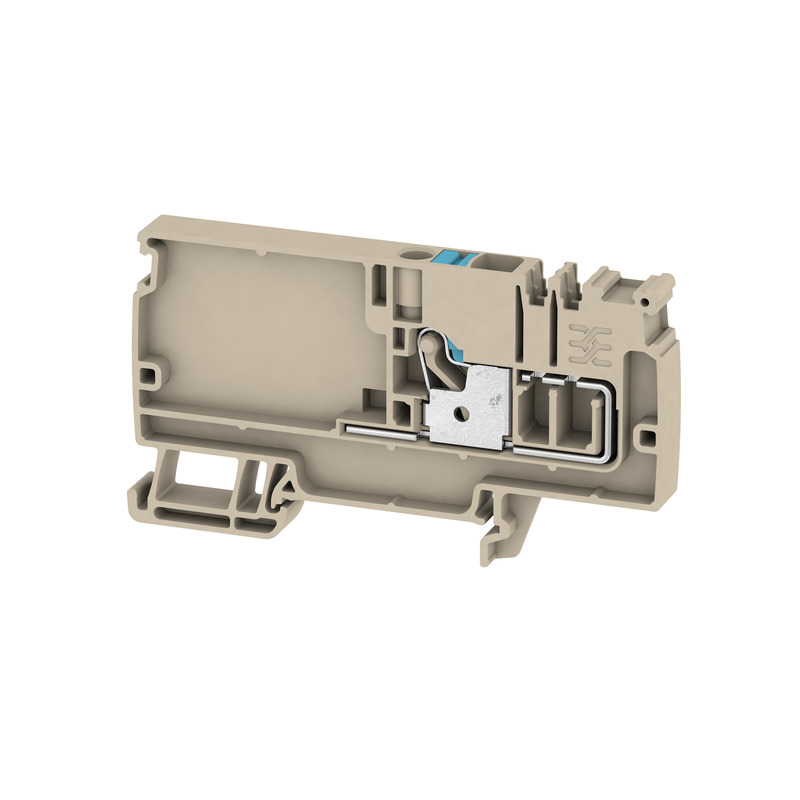

Weidmuller 1988130000 Klippon Potential Distribution Terminal Block
Image Disclaimers Message
Brand: Weidmuller
Weidmuller 1988130000 Klippon Potential Distribution Terminal Block
Brand: Weidmuller
Weidmuller 1988130000 Klippon Potential Distribution Terminal Block
Part #:1988130000
SKU #: 2374302
$46.80/20EA
Key Features
Part #:1988130000
SKU #: 2374302
Brand: Weidmuller
Amperage Rating: 36/41 A
Dimensions: 85.5 mm H x 8.1 mm W x 47 mm D
Series: A Series
Temperature Rating (Degrees F): -60 to 130 deg C
Voltage Rating: 300/500 V
$46.80/20EA
- Our tailored AAP potential distribution terminal blocks are ideal for surge current protection and central control voltage distribution
- Meanwhile, our new maxGUARD range enables potential distribution with integrated electronic load monitoring in the smallest of installation spaces
- 500 V IEC, 300 V UL
- 41 A IEC, 36 A UL
Specifications
Brand: Weidmuller
Amperage Rating: 36/41 A
Dimensions: 85.5 mm H x 8.1 mm W x 47 mm D
Series: A Series
Temperature Rating (Degrees F): -60 to 130 deg C
Voltage Rating: 300/500 V
Wire Size: 22 to 8 AWG
Color: Dark Beige
Connection type: Push-In
Material: Wemid
Mounting type: DIN Rail
UNSPSC: 39121410
UPC: 04050118373004
Weidmuller 1988130000 Klippon Potential Distribution Terminal Block
Additional Description: WEID-1988130000 AAP11 6 LO BL SUPPLY TERMINAL, PUSH IN, 6 MM, 500 V, 41 A, NUMBER OF POTENTIALS PER TIER: 1, TS 35, DARK BEIGE, COLOUR OF OPERATIONAL ELEMENTS: BLUE
Catalog Description: Power-feed terminal for potential distribution with uniform cross-connection channels.
