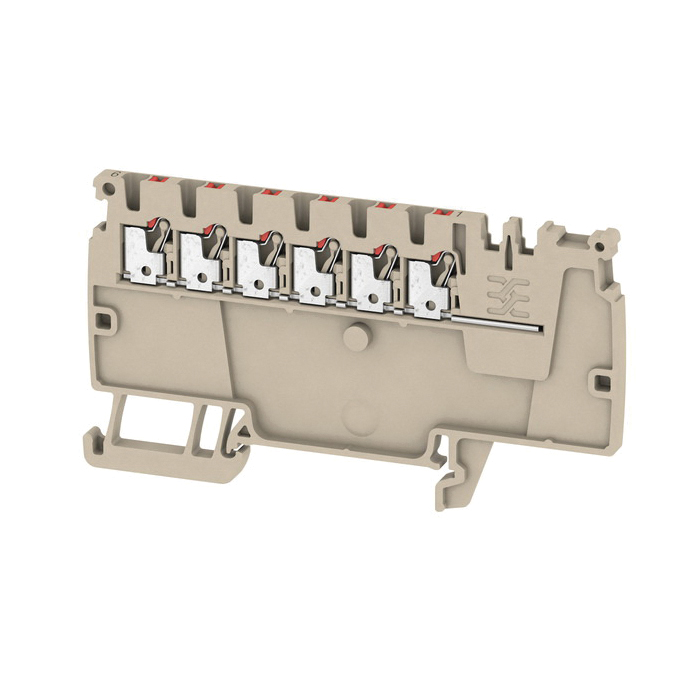

Weidmuller 1988160000 Klippon Potential Distribution Terminal Block
Image Disclaimers Message
Weidmuller 1988160000 Klippon Potential Distribution Terminal Block
Weidmuller 1988160000 Klippon Potential Distribution Terminal Block
Part #:1988160000
SKU #: 2350840
$131.50/50EA
Key Features
Part #:1988160000
SKU #: 2350840
Brand: Weidmuller
Amperage Rating: 13/7.5 A
Dimensions: 85.5 mm H x 3.5 mm W x 47 mm D
Series: A Series
Temperature Rating (Degrees F): -60 to 130 deg C
Type: Modular
$131.50/50EA
- Our tailored AAP potential distribution terminal blocks are ideal for surge current protection and central control voltage distribution
- Meanwhile, our new maxGUARD range enables potential distribution with integrated electronic load monitoring in the smallest of installation spaces
- 500 V IEC, 300 V UL
- 17.5 A IEC and 13 A UL
Specifications
Brand: Weidmuller
Amperage Rating: 13/7.5 A
Dimensions: 85.5 mm H x 3.5 mm W x 47 mm D
Series: A Series
Temperature Rating (Degrees F): -60 to 130 deg C
Type: Modular
Voltage Rating: 300/500 V
Wire Size: 26 to 14 AWG
Color: Dark Beige
Connection type: Push-In
Material: Wemid
Mounting type: DIN Rail
UNSPSC: 39121410
UPC: 04050118372939
Weidmuller 1988160000 Klippon Potential Distribution Terminal Block
Additional Description: WEID-1988160000 AAP11 1.5 LI RD POTENTIAL DISTRIBUTOR TERMINAL, PUSH IN, 1.5, 500 V, 17.5 A, NUMBER OF CONNECTIONS: 6, TS 35, DARK BEIGE, COLOUR OF OPERATIONAL ELEMENTS: RED
Catalog Description: Terminal block for potential distribution. With high contact density.
