Part Number # 1988290000
SKU # 2352680
Image Disclaimers Message
1988290000

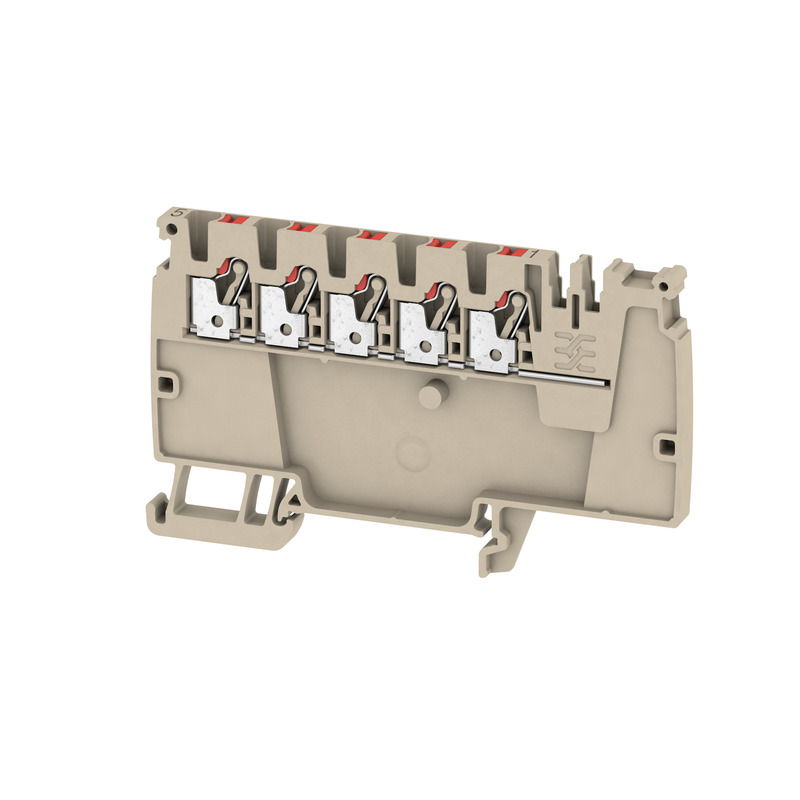

Weidmuller 1988290000 Klippon Potential Distribution Terminal Block
Part Number # 1988290000
SKU # 2352680
$170.00 / 50Each
Typical price:$184.30 / Each
Weidmuller 1988290000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1988290000 |
| SKU #: | 2352680 |
| Amperage Rating: | 20/24 A |
| Dimensions: | 89 mm H x 5.1 mm W x 53.5 mm D |
| Series: | A Series |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Type: | Modular |
| Wire Size: | 28 to 12 AWG |
| Color: | Dark Beige |
| Connection type: | Push-In |
| Country of origin: | DE |
| Material: | Wemid |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04050118372779 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$170.00 / 50Each
Typical price:$184.30 / Each
Quantity:
Weidmuller 1988290000 Klippon Potential Distribution Terminal Block
Brand: Weidmuller
Part Number: 1988290000
Additional Description: WEID-1988290000 AAP12 2.5 LI RD POTENTIAL DISTRIBUTOR TERMINAL, PUSH IN, 2.5, 800 V, 24 A, NUMBER OF CONNECTIONS: 5, TS 35, DARK BEIGE, COLOUR OF OPERATIONAL ELEMENTS: RED
Catalog Description: Terminal block for potential distribution. With high contact density.
1988290000 Item Features
- Our tailored AAP potential distribution terminal blocks are ideal for surge current protection and central control voltage distribution
- Meanwhile, our new maxGUARD range enables potential distribution with integrated electronic load monitoring in the smallest of installation spaces
- 800 V IEC, 600 V UL
- 24 A IEC and 20 A UL
1988290000 Standards
RoHS Compliant|UL File No. E60693|IEC/EN 60947-7-1:2009 Certified|ATEX Certified|CE Certified|CSA Certified|cULus Recognized|IEC EX Certified|UL 94 V-0 Flammability RatingSKU #2352680Part Number #1988290000UNSPSC39121410UPC04050118372779
