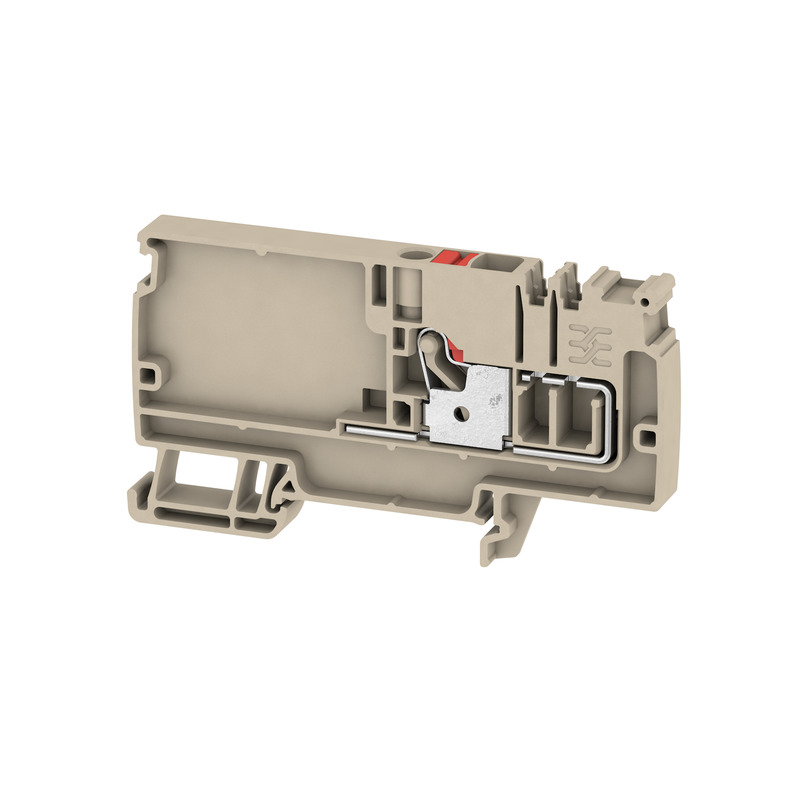

Weidmuller 1989780000 Klippon Potential Distribution Terminal Block
Part Number # 1989780000
SKU # 2374303
1989780000
Weidmuller 1989780000 Klippon Potential Distribution Terminal Block
Part Number # 1989780000
SKU # 2374303
Weidmuller 1989780000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1989780000 |
| SKU #: | 2374303 |
| Dimensions: | 77.5 mm H x 5.1 mm W x 37.65 mm D |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Type: | 1-Tier Modular |
| Material: | Wemid |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04050118485097 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 1989780000 Klippon Potential Distribution Terminal Block
Brand: Weidmuller
Part Number: 1989780000
Klippon Potential Distribution Terminal Block, Series: A Series, 300/500 V, 36/41 A, 22 to 8 AWG Wire, 12 mm Wire Strip Length, DIN Rail Mounting, Push-In Connection, -60 to 130 deg C, Wemid, Dark Beige, 85.5 mm H x 8.1 mm W x 47 mm D Dimensions
Additional Description: WEID-1989780000 AAP11 6 LO RD SUPPLY TERMINAL, PUSH IN, 6 MM, 500 V, 41 A, NUMBER OF POTENTIALS PER TIER: 1, TS 35, DARK BEIGE, COLOUR OF OPERATIONAL ELEMENTS: RED
Catalog Description: Power-feed terminal for potential distribution with uniform cross-connection channels.
1989780000 Item Features
- The innovative push-in technology reduces the amount of time you spend on wiring to a minimum
- Direct insertion guarantees high conductor pull-out forces and simple handling for all conductor types
1989780000 Standards
cULus File No. E60693 Recognized|RoHS Compliant|UL 94 V-0 Flammability Rating|CSA 200039-70089609|ATEX TUEV16ATEX7939U|IECEX IECEXTUR16.0045U|CE Certified|DNV-GL Approved|EAC Certified|IEC 60947-7-1SKU #2374303Part Number #1989780000UNSPSC39121410UPC04050118485097
Image provided may only be a representation of final product and may include optional equipment
