2001080000

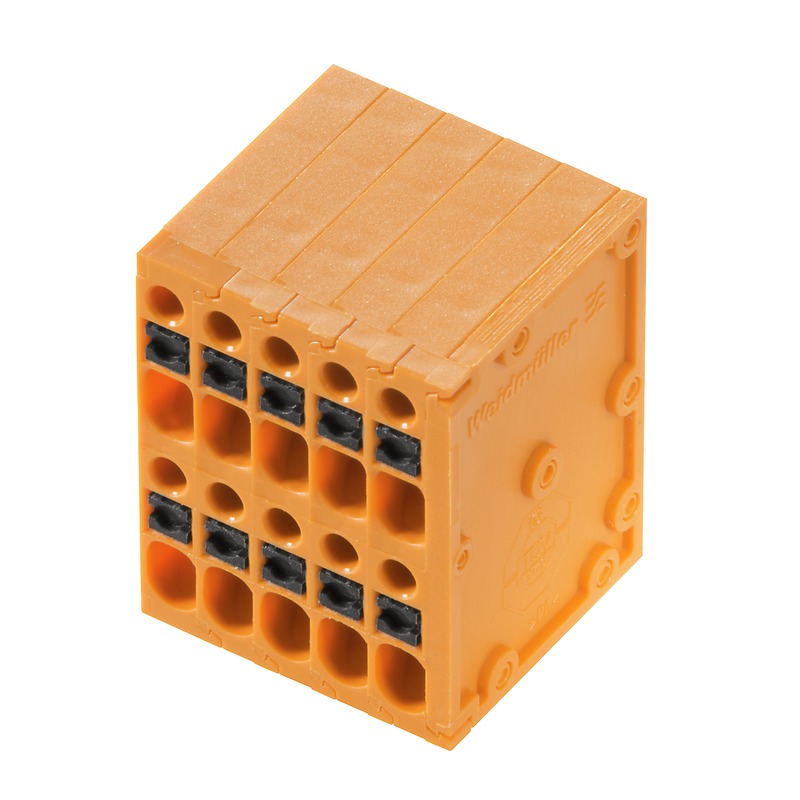

Weidmuller 2001080000 Terminal Block
Part Number # 2001080000
SKU # 2323452
$248.60 / 20Each
Typical price:$286.08 / Each
Weidmuller 2001080000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2001080000 |
| SKU #: | 2323452 |
| Dimensions: | 27.7 mm H x 61 mm W x 18 mm D |
| Number of Positions: | 32 |
| Housing material: | PA 66/6 |
| UNSPSC: | 39121443 |
| UPC: | 04050118382846 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$248.60 / 20Each
Typical price:$286.08 / Each
Quantity:
- Weidmueller, 2001080000, Plug-In Connector, Series: LS Series, 32 Positions, 2 Rows, 3.5 mm Pitch/Row Spacing, PCB Mounting, 150, 150 V, THT Solder Connector, Push-In Termination, Copper Alloy Contact, PA 66/6 Housing Material, -50 to 120 deg C, Orange, 27.7 mm H x 61 mm W x 18 mm D Dimensions
2001080000 Item Features
- Double-level PCB terminal for the wave soldering process, with PUSH IN wire connection system
- Conductor insertion and slider operation from the same direction (TOP)
- Solid and flexible conductors with wire-end ferrules can just be inserted - done
- When connecting flexible wires without wire-end ferrules, the actuating element is used to open the clamping point
- Intuitive handling thanks to the clear distinction between wire entry and actuating element
- Conductor outlet direction 90 deg
2001080000 Standards
cURus Listed|TUEVSKU #2323452Part Number #2001080000UNSPSC39121443UPC04050118382846
Image provided may only be a representation of final product and may include optional equipment
