Brand: Weidmuller

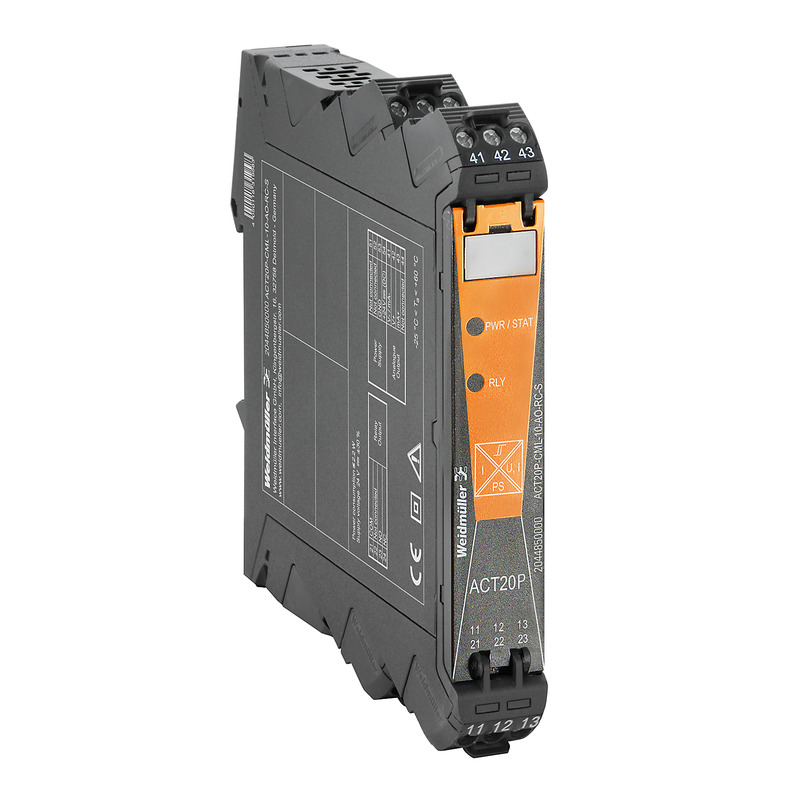

Weidmuller 2044850000 Current Measuring Transducer
Image Disclaimers Message
Brand: Weidmuller
Weidmuller 2044850000 Current Measuring Transducer
Brand: Weidmuller
Weidmuller 2044850000 Current Measuring Transducer
Part #:2044850000
SKU #: 2344089
$258.39/EA
Key Features
Part #:2044850000
SKU #: 2344089
Brand: Weidmuller
Accuracy: </=+/-0.3% at 1/5 A, </=+/-0.6% at 10 A
Dimensions: 119.2 mm H x 17.5 mm W x 113.6 mm D
Input Type: AC RMS/DC
Response Time: </=300 ms RMS, </=60 ms AA
Series: ACT20P
$258.39/EA
- Precise and highly functional signal converters
- Release levers simplify handling
- Real effective value measurement (True RMS) or arithmetic averaging (AA) measurement
- Limit value monitoring for overcurrent or undercurrent
- Relay output by means of the open circuit/closed circuit principle
- Adjustable trigger delay for filtering current peaks
- Operational status and error display on a front panel LED and output signaling according to NE43, NE44, NE107
- Galvanic four-way insulation for secure isolation according to IEC/EN 61010-2-201
Specifications
Brand: Weidmuller
Accuracy: </=+/-0.3% at 1/5 A, </=+/-0.6% at 10 A
Dimensions: 119.2 mm H x 17.5 mm W x 113.6 mm D
Input Type: AC RMS/DC
Response Time: </=300 ms RMS, </=60 ms AA
Series: ACT20P
Specifications: 16.8 to 31.2 V Supply, 300 VAC RMS Rated, 4 kV/1 min Insulation, 2.2 W Power Consumption, -40 to 85 deg C Storage, 5 to 95% Non-Condensation Humidity
Temperature Rating (Degrees F): -25 to 60 deg C
Connection type: Screw
Input current: 0 to 1/0 to 5/0 to 10 A AC/DC RMS
Output current: 0 to 20/4 to 20/-20 to 20 mA
Output type: Analog/Digital/Relay
Output voltage: 0 to 10/2 to 10/0 to 5/1 to 5/-5 to 5/-10 to 10 V
UNSPSC: 39121020
UPC: 04050118409680
Weidmuller 2044850000 Current Measuring Transducer
Additional Description: WEID-2044850000 ACT20P-CML-10-AO-RC-S CURRENT-MEASURING TRANSDUCER, ANALOGUE OUTPUT, RELAY OUTPUT, TERMINAL CONNECTION, INPUT : 0 1/5/10 A, OUTPUT : 0(4)-20 MA, RELAY
Catalog Description: Current transformer for converting currents into standard analogue measured values
