2051520000
Weidmuller 2051520000 Electrical Terminal
Part Number # 2051520000
SKU # 2352849
$95.00 / 50Each
Typical price:$105.45 / Each
Weidmuller 2051520000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2051520000 |
| SKU #: | 2352849 |
| UNSPSC: | 39121410 |
| UPC: | 04050118411683 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$95.00 / 50Each
Typical price:$105.45 / Each
Quantity:

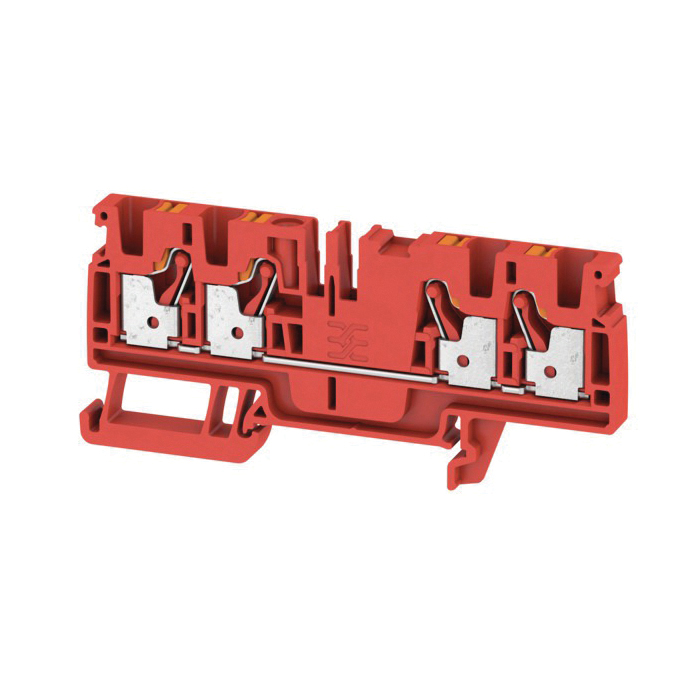

- Klippon Terminal Block, 1-Tier Feed-Through, Series: A Series, 600/800 V, 30/32 A, 26 to 10 AWG Wire, 12 mm Wire Strip Length, DIN Rail Mounting, Push-In Connection, -60 to 130 deg C, Wemid, Red, 87.5 mm H x 6.1 mm W x 39.5 mm D Dimensions
2051520000 Item Features
- The innovative push-in technology reduces the amount of time you spend on wiring to a minimum
- Direct insertion guarantees high conductor pull-out forces and simple handling for all conductor types
- Integrated cross-connectors
- Efficient markers
- Compensating mounting foot
- Integrated pushers
- Check and test point
- 800 V IEC, 600 V UL and CSA
- 32 A IEC, 30 A UL and CSA
2051520000 Standards
cULus File No. E60693 Recognized|CSA 200039-70089609|ATEX TUEV16ATEX7909U|IECEX IECEXTUR16.0036U|UL 94 V-0 Flammability Rating|CE Certified|DNV-GL Approved|EAC Certified|IEC 60947-7-1SKU #2352849Part Number #2051520000UNSPSC39121410UPC04050118411683
Image provided may only be a representation of final product and may include optional equipment
