2051610000
Weidmuller 2051610000 Terminal Blocks
Part Number # 2051610000
SKU # 2425983
$99.46 / 50Each
Typical price:$110.45 / Each
Weidmuller 2051610000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2051610000 |
| SKU #: | 2425983 |
| Amperage Rating: | 30/32 A |
| Dimensions: | 87.5 mm H x 6.1 mm W x 39.5 mm D |
| Series: | A Series |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Type: | 1-Tier Feed-Through |
| Wire Size: | 26 to 10 AWG |
| Connection type: | Push-In |
| Country of origin: | RO |
| Material: | Wemid |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04050118411775 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$99.46 / 50Each
Typical price:$110.45 / Each
Quantity:

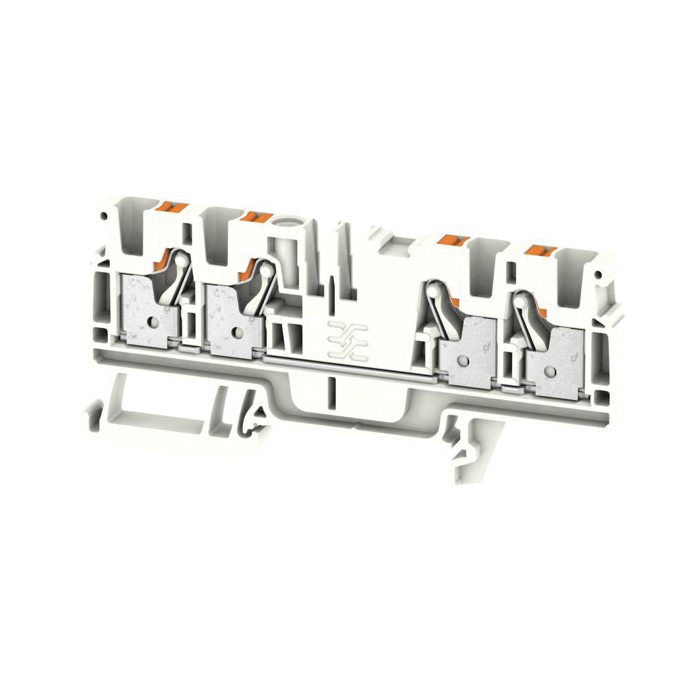

- Klippon Terminal Block, 1-Tier Feed-Through, Series: A Series, 600/800 V, 30/32 A, 26 to 10 AWG Wire, 12 mm Wire Strip Length, DIN Rail Mounting, Push-In Connection, -60 to 130 deg C, Wemid, White, 87.5 mm H x 6.1 mm W x 39.5 mm D Dimensions
2051610000 Item Features
- The innovative push-in technology reduces the amount of time you spend on wiring to a minimum
- Direct insertion guarantees high conductor pull-out forces and simple handling for all conductor types
- Integrated cross-connectors
- Efficient markers
- Compensating mounting foot
- Integrated pushers
- Check and test point
- 800 V IEC, 600 V UL and CSA
- 32 A IEC, 30 A UL and CSA
2051610000 Standards
cULus File No. E60693 Recognized|CSA 200039-70089609|ATEX TUEV16ATEX7909U|IECEX IECEXTUR16.0036U|UL 94 V-0 Flammability Rating|CE Certified|DNV-GL Approved|EAC Certified|IEC 60947-7-1SKU #2425983Part Number #2051610000UNSPSC39121410UPC04050118411775
