2109000000

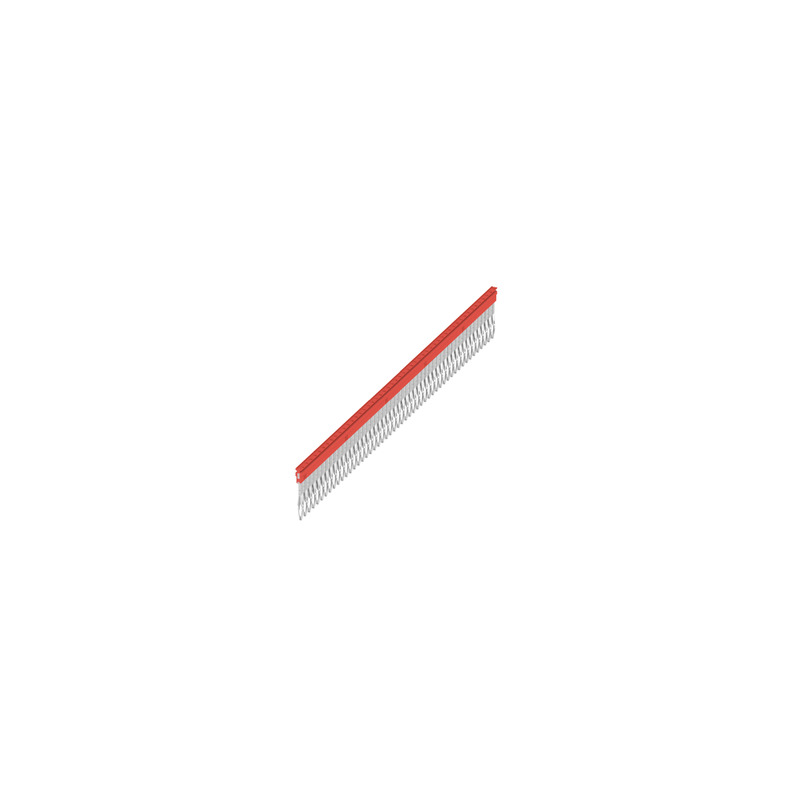

Weidmuller 2109000000 Cross Connector
Part Number # 2109000000
SKU # 2374310
$131.75 / 5Each
Typical price:$146.33 / Each
Weidmuller 2109000000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2109000000 |
| SKU #: | 2374310 |
| Amperage Rating: | 6.3 A |
| Dimensions: | 88 mm H x 5.08 mm W x 74 mm D |
| Series: | W Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Terminal Size: | M3 |
| Torque Rating: | 0.5 to 0.6 N-m |
| Type: | 1-Tier |
| Wire Size: | 26 to 12 AWG |
| Connection type: | Screw |
| Country of origin: | RO |
| Material: | Wemid |
| Mounting type: | Snap-Fit |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04050118486001 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$131.75 / 5Each
Typical price:$146.33 / Each
Quantity:

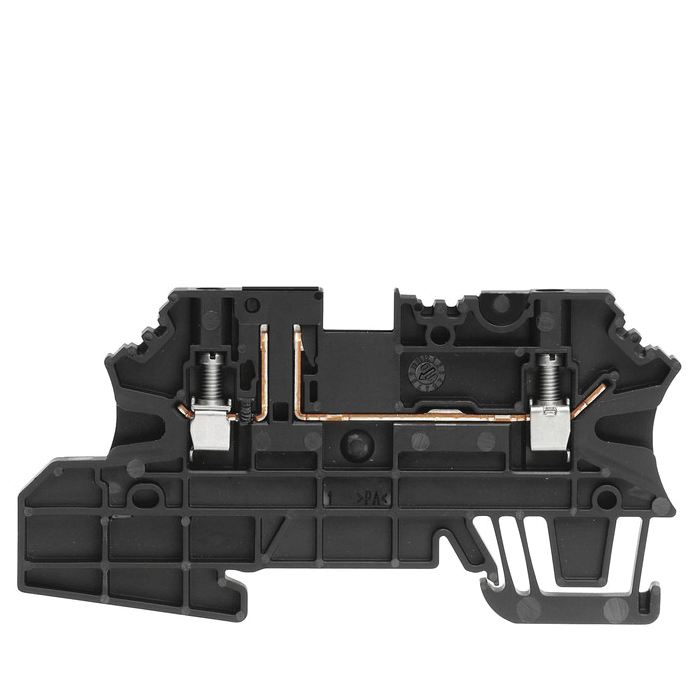

- Klippon Fuse Terminal Block, 1-Tier, Series: W Series, 500 V, 6.3 A, 26 to 12 AWG Wire, 10 mm Wire Strip Length, M3 Terminal, 0.5 to 0.6 N-m Torque, Snap-Fit Mounting, Screw Connection, -50 to 120 deg C, Wemid, Black, 88 mm H x 5.08 mm W x 74 mm D Dimensions
2109000000 Item Features
- Weidmuller new wmf (Weidmuller Multi-Functional) line of terminal blocks provide a multi-functional solution for routing and distributing signals
- This space saving terminal combines all the necessary functionality into a single solution
- It features an integrated shield connection and can be used with feed through, fuse and disconnect functionality
- The three cross-connection channels and wide variety of labeling options offer additional flexibility
2109000000 Standards
RoHS Compliant|cULus Recognized|UL File No. E60693|UL 94 V-0 Flammability RatingSKU #2374310Part Number #2109000000UNSPSC39121410UPC04050118486001
Image provided may only be a representation of final product and may include optional equipment
