Part Number # 2434390000
SKU # 2375559
Image Disclaimers Message
2434390000

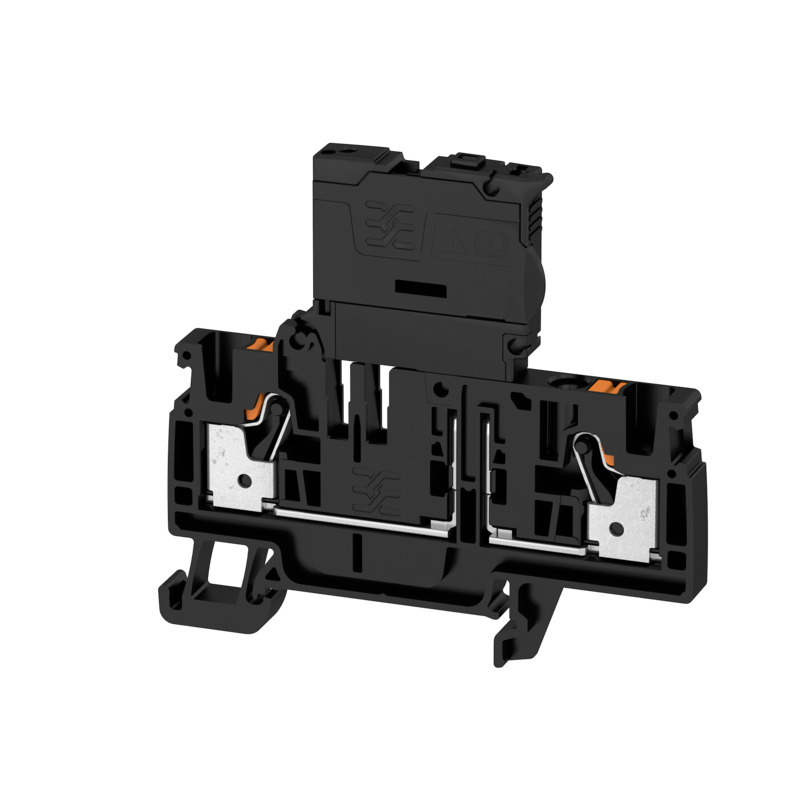

Weidmuller 2434390000 Klippon Fuse Terminal Block
Part Number # 2434390000
SKU # 2375559
$516.50 / 50Each
Typical price:$560.70 / Each
Weidmuller 2434390000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2434390000 |
| SKU #: | 2375559 |
| Amperage Rating: | 6.3 A |
| Dimensions: | 74 mm H x 6.1 mm W x 68 mm D |
| Series: | A Series |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Type: | 1-Tier |
| Wire Size: | 26 to 12 AWG |
| Connection type: | Push-In |
| Country of origin: | DE |
| Material: | Wemid |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04050118445114 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$516.50 / 50Each
Typical price:$560.70 / Each
Quantity:
Weidmuller 2434390000 Klippon Fuse Terminal Block
Brand: Weidmuller
Part Number: 2434390000
Additional Description: WEID-2434390000 AFS 4 2C 100-250V BK FUSE TERMINAL, PUSH IN, 4 MM, 250 V, 6.3 A, G-SI. 5 X 20, BLACK
Catalog Description: Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity. With removable carrier for a cartridge fuse.
2434390000 Includes
5 x 20 mm Cartridge Fuse2434390000 Item Features
- The innovative push-in technology reduces the amount of time you spend on wiring to a minimum
- Direct insertion guarantees high conductor pull-out forces and simple handling for all conductor types
2434390000 Standards
RoHS Compliant|CE Certified|CSA Certified|cULus Recognized|cULusEX Listed|DNV-GL Approved|EAC Certified|IEC EX Certified|ATEX Certified|UL File No. E60693|UL 94 V-0 Flammability RatingSKU #2375559Part Number #2434390000UNSPSC39121410UPC04050118445114
