2439380000

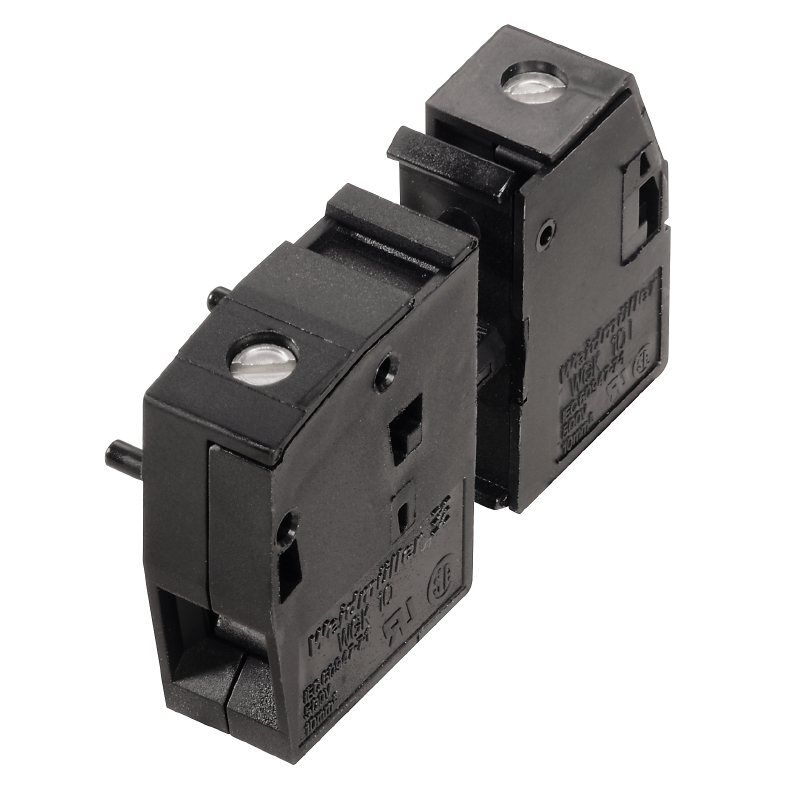

Weidmuller 2439380000 Terminal Block
Part Number # 2439380000
SKU # 2326065
$317.00 / 50Each
Typical price:$364.75 / Each
Weidmuller 2439380000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2439380000 |
| SKU #: | 2326065 |
| Amperage Rating: | 57/65 A |
| Series: | WGK Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Terminal Size: | M4 |
| Torque Rating: | 1.2 to 2.4 N-m |
| Type: | Feed-Through Lead-Through Horizontal Outlet |
| Wire Size: | 24 to 6 AWG |
| Connection type: | Screw |
| Country of origin: | CN |
| Material: | Wemid |
| Mounting type: | Panel |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04050118468359 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$317.00 / 50Each
Typical price:$364.75 / Each
Quantity:
- Weidmuller OMNIMATE Power Terminal Block, Feed-Through Lead-Through Horizontal Outlet, Series: WGK Series, 300/500 V, 57/65 A, 24 to 6 AWG Wire, 11 mm Wire Strip Length, M4 Terminal, 1.2 to 2.4 N-m Torque, Panel Mounting, Screw Connection, -50 to 120 deg C, Wemid, Gray
2439380000 Application
For EMC filters, discretely structured converters, drive engineering and encapsulated equipment or inverters2439380000 Item Features
- The WGK finger-proof insulated enclosures are especially suitable as industrial electronic enclosures for frequency converters, power supplies or filter components which offer a convenient and reliable form of connection internally and externally
- To match the wire guides to the installation requirements in the best possible way
- Wide performance spectrum for currents up to 232 A and wire cross-sections from 4 to 95 sq-mm
- Clear marking in every situation
- Safety with extra power
- Easy handling
- Solid and proven connection
- 500 V IEC, 300 V UL
- 57 A IEC and 65 A UL
2439380000 Standards
RoHS Compliant|cULus File No. E60693 Recognized|UL 1059|UL 94 V-0 Flammability Rating|IEC 60664-1|IEC 61984SKU #2326065Part Number #2439380000UNSPSC39121410UPC04050118468359
Image provided may only be a representation of final product and may include optional equipment
