2460810000

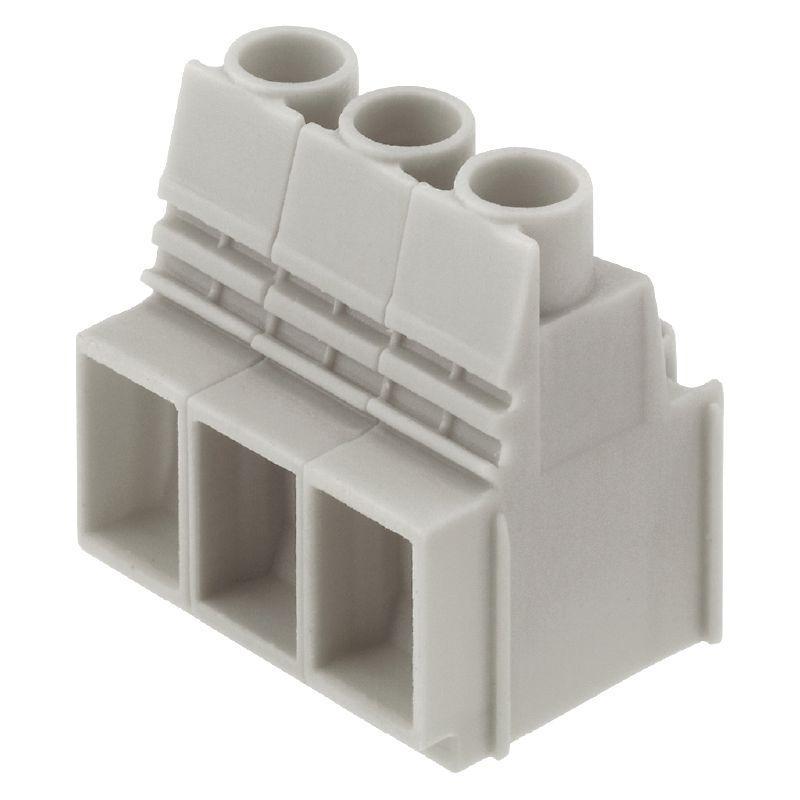

Weidmuller 2460810000 Electrical Terminal
Part Number # 2460810000
SKU # 2376573
$74.40 / 60Each
Typical price:$82.86 / Each
Weidmuller 2460810000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2460810000 |
| SKU #: | 2376573 |
| Amperage Rating: | 58/76 A |
| Dimensions: | 36.5 mm H x 51.6 mm W x 25.1 mm D |
| Number of Poles: | 5 |
| Series: | LUP Series |
| Spacing: | 10.16 mm |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Terminal Size: | M4 |
| Terminal Type: | THT Solder |
| Torque Rating: | 1.2 to 1.5 N-m |
| Wire Size: | 26 to 6 AWG |
| Connection type: | Clamping Yoke |
| Country of origin: | CZ |
| Material: | Wemid |
| Mounting type: | Through-Hole |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04050118476231 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$74.40 / 60Each
Typical price:$82.86 / Each
Quantity:
- Weidmuller OMNIMATE Power PCB Terminal Block, Series: LUP Series, 300/1000 V, 58/76 A, 5 Pole, 26 to 6 AWG Wire, 12 mm Wire Strip Length, THT Solder Terminal, M4 Terminal, 10.16 mm Spacing, 1.2 to 1.5 N-m Torque, Through-Hole Mounting, Clamping Yoke Connection, -50 to 120 deg C, Wemid, Pebble Gray, 36.5 mm H x 51.6 mm W x 25.1 mm D Dimensions
2460810000 Item Features
- This PCB terminal provides connections for 1000 V, test point, 76 A and 16 sq-mm conductor cross-section with proven clamping yoke connection at 10.16 mm pitch
- Conductor outlet direction in 90 deg design
- 1000 V IEC, 300 V UL
- 76 A IEC, 58 A UL
- https://youtu.be/iAlkrdkNocM
2460810000 Standards
RoHS Compliant|UL 94 V-0 Flammability Rating|UL 1059SKU #2376573Part Number #2460810000UNSPSC39121410UPC04050118476231
Image provided may only be a representation of final product and may include optional equipment
