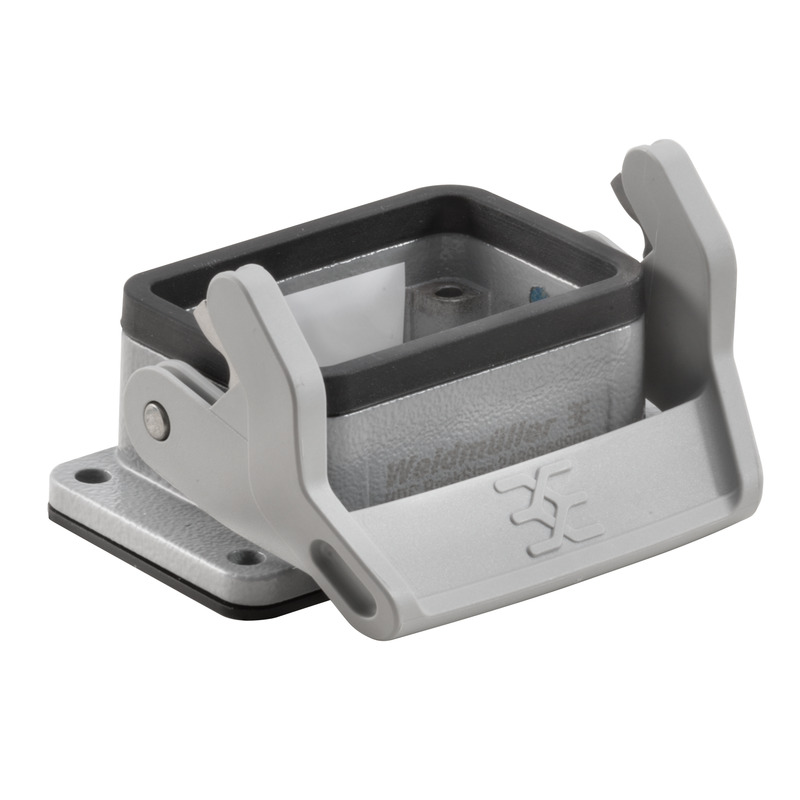

Weidmuller 2488560000 Bulkhead Pass Through Connector
Part Number # 2488560000
SKU # 2397796
2488560000
Weidmuller 2488560000 Bulkhead Pass Through Connector
Part Number # 2488560000
SKU # 2397796
$11.31 / Each
Typical price:$13.01 / Each
Weidmuller 2488560000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2488560000 |
| SKU #: | 2397796 |
| Dimensions: | 29.5 mm H x 57 mm W |
| Finish: | Powder Coated |
| Specifications: | SZ 4, IP65, 1.2 N-m Tightening Torque, 32 mm H x 83 mm W Mount, Side Locking Clamp, Lower Side |
| Suitable For Use With: | ModuPlug Modular System and RockStar NEMA 4X/IP66 Housing |
| Temperature Rating (Degrees F): | -40 to 125 deg C |
| Type: | Standard |
| Country of origin: | CN |
| Material: | Die Cast Aluminum |
| Mounting type: | Panel |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151901 |
| UPC: | 04050118541502 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$11.31 / Each
Typical price:$13.01 / Each
Quantity:
- Weidmuller Open Connector Base, Standard, Bottom Entry Position, Panel Mount, For Use With: ModuPlug Modular System and RockStar NEMA 4X/IP66 Housing, -40 to 125 deg C, SZ 4, IP65, 1.2 N-m Tightening Torque, 32 mm H x 83 mm W Mount, Side Locking Clamp, Lower Side, Die Cast Aluminum, Gray, Powder Coated, 29.5 mm H x 57 mm W
2488560000 Item Features
- The special die cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings
- The cleverly designed interlock system is manufactured from stainless steel
- This guarantees a long lifespan with high resistance to corrosion and impact
- The housing interlock system provides integrated safety
- Our unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening
- The laser marking allows for easy and quick identification
- Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned
2488560000 Standards
REACH SVHC Lead 7439-92-1|REACH DIBP 84-69-5|CE Certified|cULus Recognized|UL File No. E92202SKU #2397796Part Number #2488560000UNSPSC32151901UPC04050118541502
Image provided may only be a representation of final product and may include optional equipment
