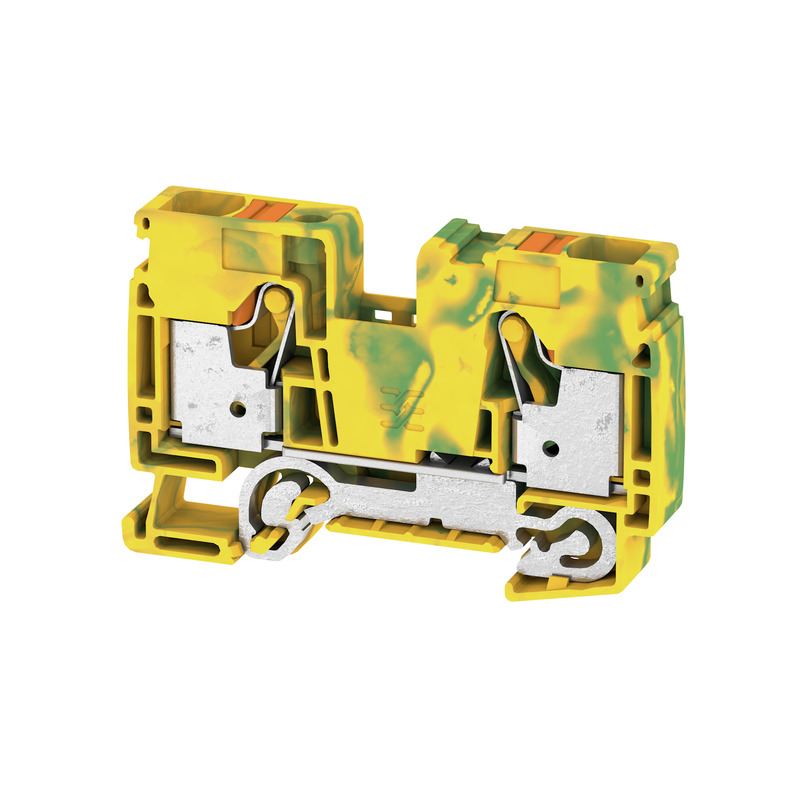

Weidmuller 2494010000 A Series 1-Tier Modular PE Terminal Block
Part Number # 2494010000
SKU # 2372284
$167.00 / 20Each
Typical price:$181.36 / Each
Weidmuller 2494010000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2494010000 |
| SKU #: | 2372284 |
| Dimensions: | 80.5 mm H x 12 mm W x 51.5 mm D |
| Series: | A Series |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Type: | 1-Tier Modular |
| Wire Size: | 18 to 4 AWG |
| Color: | Green/Yellow |
| Connection type: | Push-In |
| Country of origin: | DE |
| Material: | Wemid |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04050118503876 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$167.00 / 20Each
Typical price:$181.36 / Each
Quantity:
Weidmuller 2494010000 A Series 1-Tier Modular PE Terminal Block
Brand: Weidmuller
Part Number: 2494010000
Additional Description: WEID-2494010000 A2C 16 PE PE TERMINAL, PUSH IN, 16 MM, NUMBER OF CONNECTIONS: 2, NUMBER OF LEVELS: 1, GREEN/YELLOW, ORANGE
Catalog Description: Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
2494010000 Item Features
- The innovative push-in technology reduces the amount of time you spend on wiring to a minimum
- Direct insertion guarantees high conductor pull-out forces and simple handling for all conductor types
2494010000 Standards
RoHS Compliant|CE Certified|CSA Certified|cULus Recognized|DNV-GL Approved|UL File No. E60693|EAC Certified|UL 94 V-0 Flammability RatingSKU #2372284Part Number #2494010000UNSPSC39121410UPC04050118503876
