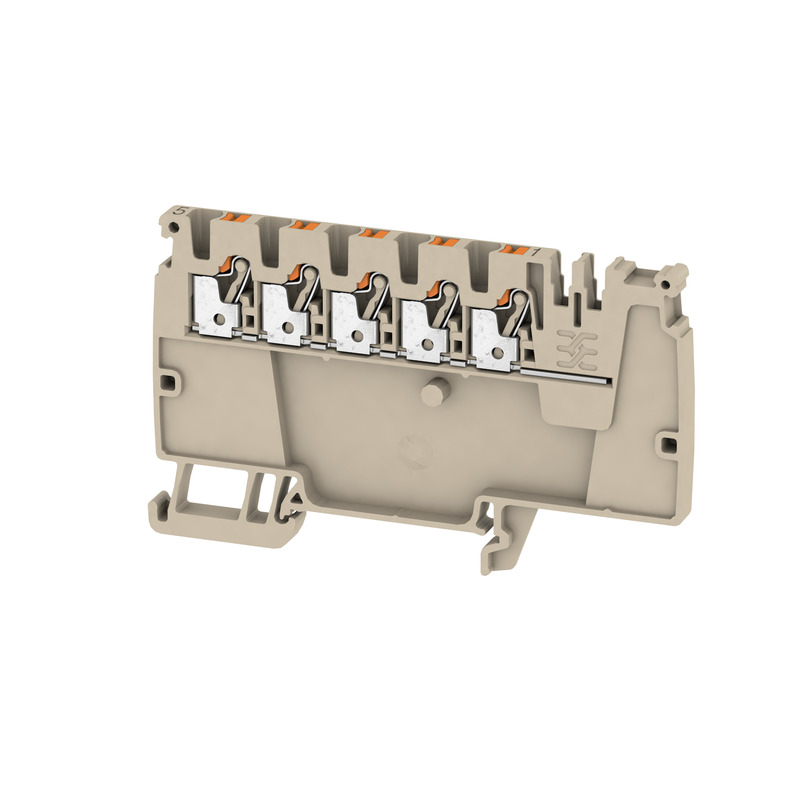

Weidmuller 2503880000 A Series Modular Potential Distribution Terminal Block With Separate Fusing
Image Disclaimers Message
Weidmuller 2503880000 A Series Modular Potential Distribution Terminal Block With Separate Fusing
Weidmuller 2503880000 A Series Modular Potential Distribution Terminal Block With Separate Fusing
Part #:2503880000
SKU #: 2379543
Key Features
Part #:2503880000
SKU #: 2379543
Brand: Weidmuller
Amperage Rating: 20/24 A
Dimensions: 89 mm H x 5.1 mm W x 53.5 mm D
Series: A Series
Temperature Rating (Degrees F): -60 to 130 deg C
Type: Modular
- Our tailored AAP potential distribution terminal blocks are ideal for surge current protection and central control voltage distribution
- Meanwhile, our new maxGUARD range enables potential distribution with integrated electronic load monitoring in the smallest of installation spaces
- 800 V IEC, 600 V UL
- 24 A IEC and 20 A UL
Weidmuller 2503880000 A Series Modular Potential Distribution Terminal Block With Separate Fusing
Klippon Potential Distribution Terminal Block, Modular, Series: A Series, 600/800 V, 20/24 A, 28 to 12 AWG Wire, 10 mm Wire Strip Length, DIN Rail Mounting, Push-In Connection, -60 to 130 deg C, Wemid, Dark Beige, 89 mm H x 5.1 mm W x 53.5 mm D Dimensions
Additional Description: WEID-2503880000 AAP12 2.5 LI OR SUPPLY TERMINAL, PUSH IN, 2.5 MM, 800 V, 24 A, NUMBER OF POTENTIALS PER TIER: 1, TS 35, DARK BEIGE, COLOUR OF OPERATIONAL ELEMENTS: ORANGE
Catalog Description: Power-feed terminal for potential distribution with uniform cross-connection channels.
