2503900000
Weidmuller 2503900000 Terminal Blocks
Part Number # 2503900000
SKU # 2379542
$143.00 / 20Each
Typical price:$158.84 / Each
Weidmuller 2503900000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2503900000 |
| SKU #: | 2379542 |
| Amperage Rating: | 13/17.5 A |
| Dimensions: | 85.5 mm H x 3.5 mm W x 47 mm D |
| Series: | A Series |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Type: | Modular |
| Wire Size: | 26 to 14 AWG |
| Connection type: | Push-In |
| Country of origin: | RO |
| Material: | Wemid |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04050118517576 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$143.00 / 20Each
Typical price:$158.84 / Each
Quantity:

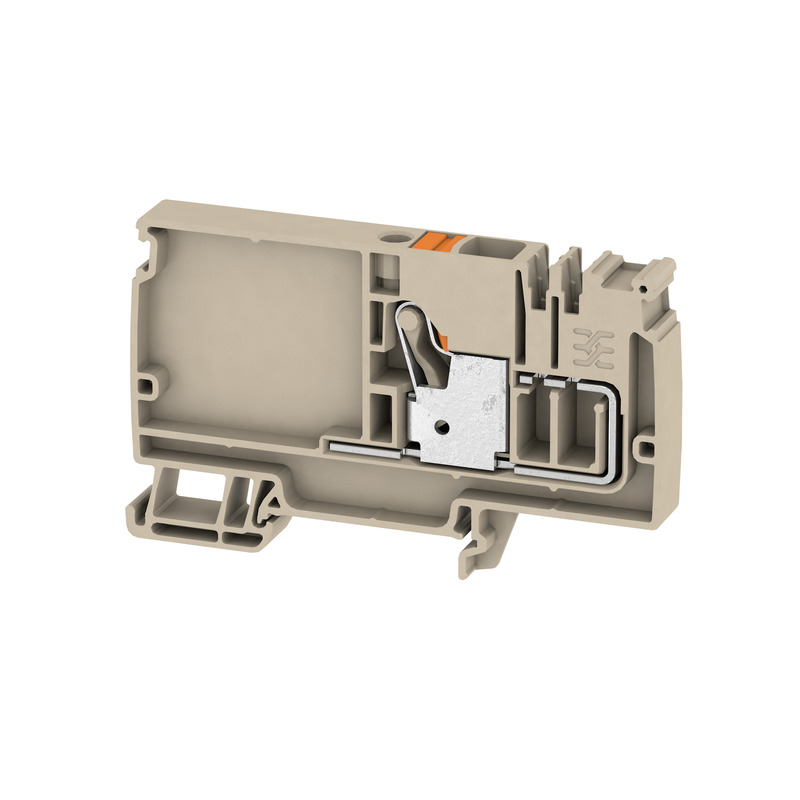

- Klippon Potential Distribution Terminal Block, Modular, Series: A Series, 300/500 V, 13/17.5 A, 26 to 14 AWG Wire, 8 mm Wire Strip Length, DIN Rail Mounting, Push-In Connection, -60 to 130 deg C, Wemid, Dark Beige, 85.5 mm H x 3.5 mm W x 47 mm D Dimensions
2503900000 Item Features
- Our tailored AAP potential distribution terminal blocks are ideal for surge current protection and central control voltage distribution
- Meanwhile, our new maxGUARD range enables potential distribution with integrated electronic load monitoring in the smallest of installation spaces
- 500 V IEC, 300 V UL
- 17.5 A IEC and 13 A UL
2503900000 Standards
RoHS Compliant|UL File No. E60693|ATEX Certified|CE Certified|CSA Certified|cULus Recognized|IEC EX Certified|UL 94 V-0 Flammability RatingSKU #2379542Part Number #2503900000UNSPSC39121410UPC04050118517576
Image provided may only be a representation of final product and may include optional equipment
