Brand: Weidmuller

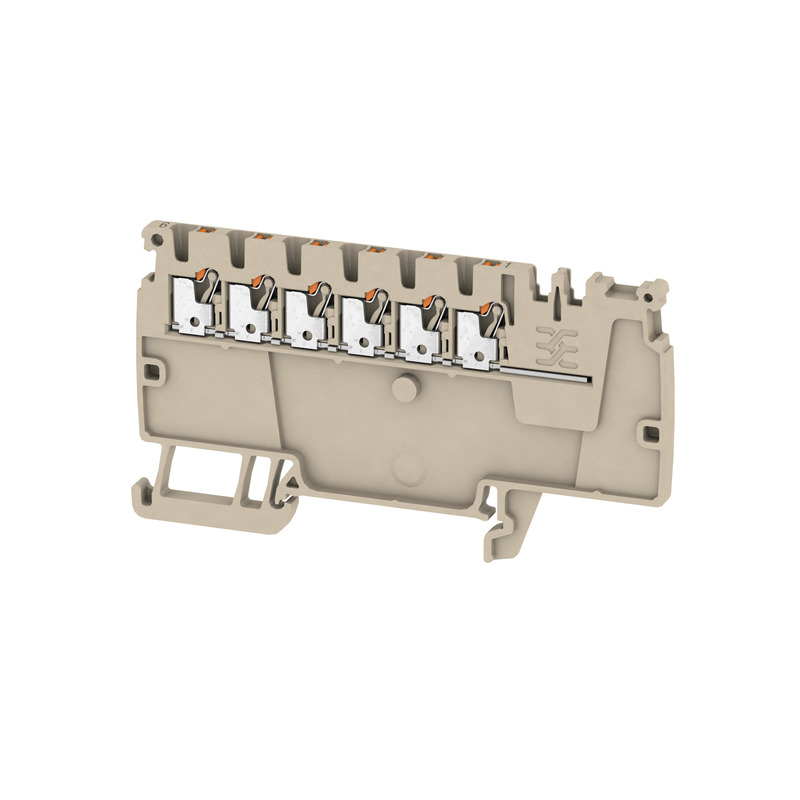

Weidmuller 2503910000 A Series Modular Potential Distribution Terminal Block With Separate Fusing
Image Disclaimers Message
Brand: Weidmuller
Weidmuller 2503910000 A Series Modular Potential Distribution Terminal Block With Separate Fusing
Brand: Weidmuller
Weidmuller 2503910000 A Series Modular Potential Distribution Terminal Block With Separate Fusing
Part #:2503910000
SKU #: 2385656
$131.50/50EA
Key Features
Part #:2503910000
SKU #: 2385656
Brand: Weidmuller
Amperage Rating: 13/17.5 A
Dimensions: 85.5 mm H x 3.5 mm W x 47 mm D
Series: A Series
Temperature Rating (Degrees F): -60 to 130 deg C
Type: Modular
$131.50/50EA
- Our tailored AAP potential distribution terminal blocks are ideal for surge current protection and central control voltage distribution
- Meanwhile, our new maxGUARD range enables potential distribution with integrated electronic load monitoring in the smallest of installation spaces
- 500 V IEC, 300 V UL
- 17.5 A IEC and 13 A UL
Specifications
Brand: Weidmuller
Amperage Rating: 13/17.5 A
Dimensions: 85.5 mm H x 3.5 mm W x 47 mm D
Series: A Series
Temperature Rating (Degrees F): -60 to 130 deg C
Type: Modular
Voltage Rating: 300/500 V
Wire Size: 26 to 14 AWG
Color: Dark Beige
Connection type: Push-In
Material: Wemid
Mounting type: DIN Rail
UNSPSC: 39121410
UPC: 04050118517583
Weidmuller 2503910000 A Series Modular Potential Distribution Terminal Block With Separate Fusing
Additional Description: WEID-2503910000 AAP11 1.5 LI OR SUPPLY TERMINAL, PUSH IN, 1.5 MM, 500 V, 17.5 A, NUMBER OF POTENTIALS PER TIER: 1, TS 35, DARK BEIGE, COLOUR OF OPERATIONAL ELEMENTS: ORANGE
Catalog Description: Power-feed terminal for potential distribution with uniform cross-connection channels.
