2508000000
Weidmuller 2508000000 Terminal Blocks
Part Number # 2508000000
SKU # 2405640
$98.75 / 100Each
Typical price:$109.70 / Each
Weidmuller 2508000000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2508000000 |
| SKU #: | 2405640 |
| Amperage Rating: | 20/24 A |
| Dimensions: | 2.165 in H x 0.201 in W x 1.437 in D |
| Series: | A-Series |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Type: | 1-Tier Feed-Through Universal |
| Wire Size: | 28 to 12 AWG |
| Connection type: | Push-In |
| Country of origin: | DE |
| Material: | Wemid |
| Mounting type: | Snap-Fit |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04050118525311 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$98.75 / 100Each
Typical price:$109.70 / Each
Quantity:
- Klippon Terminal Block, 1-Tier Feed-Through Universal, Series: A-Series, 550/600/800 V, 20/24 A, 28 to 12 AWG Wire, 10 mm Wire Strip Length, Snap-Fit Mounting, Push-In Connection, -60 to 130 deg C, Wemid, Dark Blue, 2.165 in H x 0.201 in W x 1.437 in D Dimensions
2508000000 Item Features
- Integrated cross connectors
- Efficient markers
- Compensating mounting foot
- Integrated pushers
- Check and test point
- 800 V IEC, 550 V EN 60079-7, 600 V UL and CSA
- 24 A IEC, 20 A UL and CSA
- https://youtu.be/Ax-uMMGVSA4
2508000000 Standards
UL 94 V-0 Flammability Rating|CE Certified|CSA Certified|DNV-GL Certified|ATEX Compliant|EAC Approved|IEC EX Certified|cUL File No. E60693SKU #2405640Part Number #2508000000UNSPSC39121410UPC04050118525311

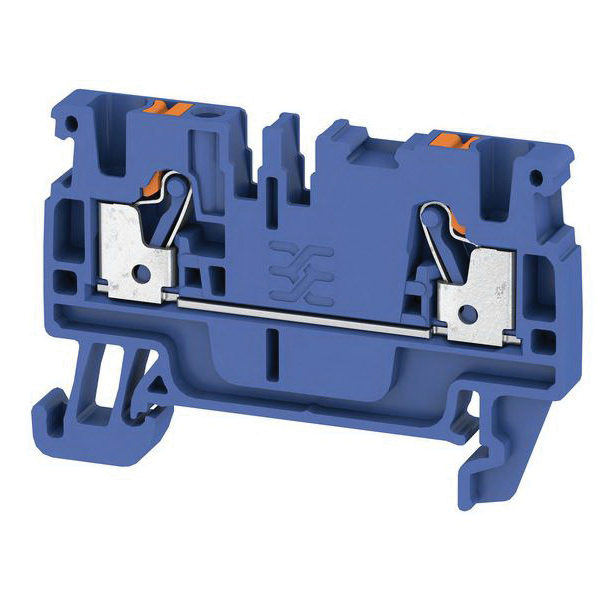

Image provided may only be a representation of final product and may include optional equipment
