2508170000

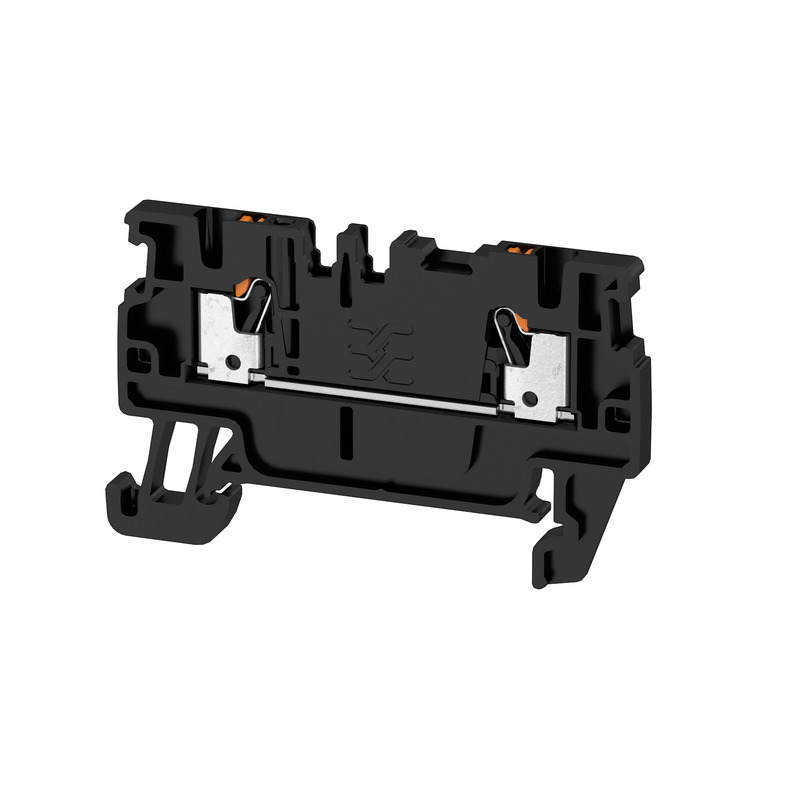

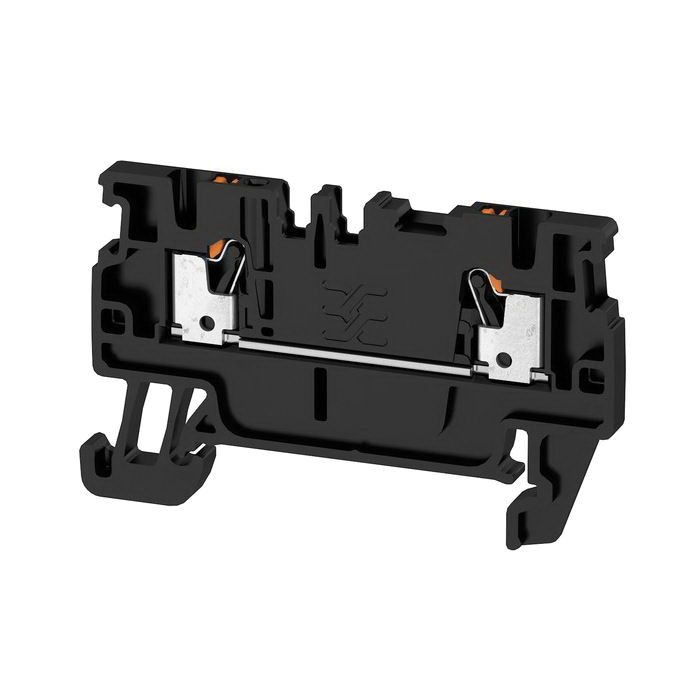

Weidmuller 2508170000 Electrical Terminal
Part Number # 2508170000
SKU # 2380045
$96.00 / 100Each
Typical price:$107.20 / Each
Weidmuller 2508170000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2508170000 |
| SKU #: | 2380045 |
| Amperage Rating: | 13/17.5 A |
| Dimensions: | 2.165 in H x 0.138 in W x 1.319 in D |
| Series: | A-Series |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Type: | 1-Tier Feed-Through Universal |
| Wire Size: | 26 to 14 AWG |
| Connection type: | Push-In |
| Country of origin: | RO |
| Material: | Wemid |
| Mounting type: | Snap-Fit |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04050118525649 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$96.00 / 100Each
Typical price:$107.20 / Each
Quantity:
- Klippon Terminal Block, 1-Tier Feed-Through Universal, Series: A-Series, 500/300 V, 13/17.5 A, 26 to 14 AWG Wire, 8 mm Wire Strip Length, Snap-Fit Mounting, Push-In Connection, -60 to 130 deg C, Wemid, Black, 2.165 in H x 0.138 in W x 1.319 in D Dimensions
2508170000 Item Features
- Integrated cross connectors
- Efficient markers
- Compensating mounting foot
- Integrated pushers
- Check and test point
- 500 V IEC, 300 V UL
- 17.5 A IEC, 13 A UL
- https://youtu.be/Ax-uMMGVSA4
2508170000 Standards
UL 94 V-0 Flammability Rating|CE Certified|CSA Certified|DNV-GL Certified|ATEX Compliant|EAC Approved|IEC EX Certified|cUL File No. E60693SKU #2380045Part Number #2508170000UNSPSC39121410UPC04050118525649
Image provided may only be a representation of final product and may include optional equipment
