2508210000
Weidmuller 2508210000 Terminal Blocks
Part Number # 2508210000
SKU # 2406184
$96.49 / 100Each
Typical price:$107.20 / Each
Weidmuller 2508210000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2508210000 |
| SKU #: | 2406184 |
| Amperage Rating: | 13/17.5 A |
| Dimensions: | 2.165 in H x 0.138 in W x 1.319 in D |
| Series: | A-Series |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Type: | 1-Tier Feed-Through Universal |
| Wire Size: | 26 to 14 AWG |
| Material: | Wemid |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04050118525687 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$96.49 / 100Each
Typical price:$107.20 / Each
Quantity:
Weidmuller 2508210000 Terminal Blocks
Brand: Weidmuller
Part Number: 2508210000
Additional Description: WEID-2508210000 A2C 1.5 GN FEED-THROUGH TERMINAL BLOCK, PUSH IN, 1.5 MM, 500 V, 17.5 A, NUMBER OF CONNECTIONS: 2
Catalog Description: Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.
2508210000 Item Features
- Integrated cross connectors
- Efficient markers
- Compensating mounting foot
- Integrated pushers
- Check and test point
- 500 V IEC, 300 V UL
- 17.5 A IEC, 13 A UL
- https://youtu.be/Ax-uMMGVSA4
2508210000 Standards
UL 94 V-0 Flammability Rating|CE Certified|CSA Certified|DNV-GL Certified|ATEX Compliant|EAC Approved|IEC EX Certified|cUL File No. E60693SKU #2406184Part Number #2508210000UNSPSC39121410UPC04050118525687

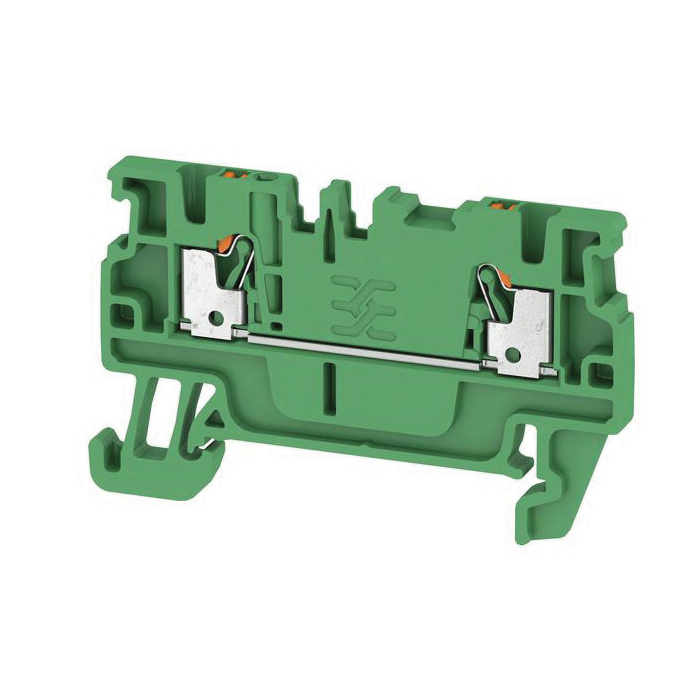

Image provided may only be a representation of final product and may include optional equipment
