2508220000
Weidmuller 2508220000 Electrical Terminal
Part Number # 2508220000
SKU # 2380044
$96.00 / 100Each
Typical price:$107.20 / Each
Weidmuller 2508220000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2508220000 |
| SKU #: | 2380044 |
| Amperage Rating: | 17.5 A |
| Dimensions: | 2.165 in H x 0.138 in W x 1.319 in D |
| Number of Poles: | 2 |
| Series: | A Series |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Terminal Size: | 0.4 x 2.0 mm |
| Terminal Type: | Blade |
| Type: | 1-Tier |
| Wire Size: | 26 to 14 AWG |
| Connection type: | Push-In |
| Country of origin: | RO |
| Material: | Wemid |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04050118525694 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$96.00 / 100Each
Typical price:$107.20 / Each
Quantity:

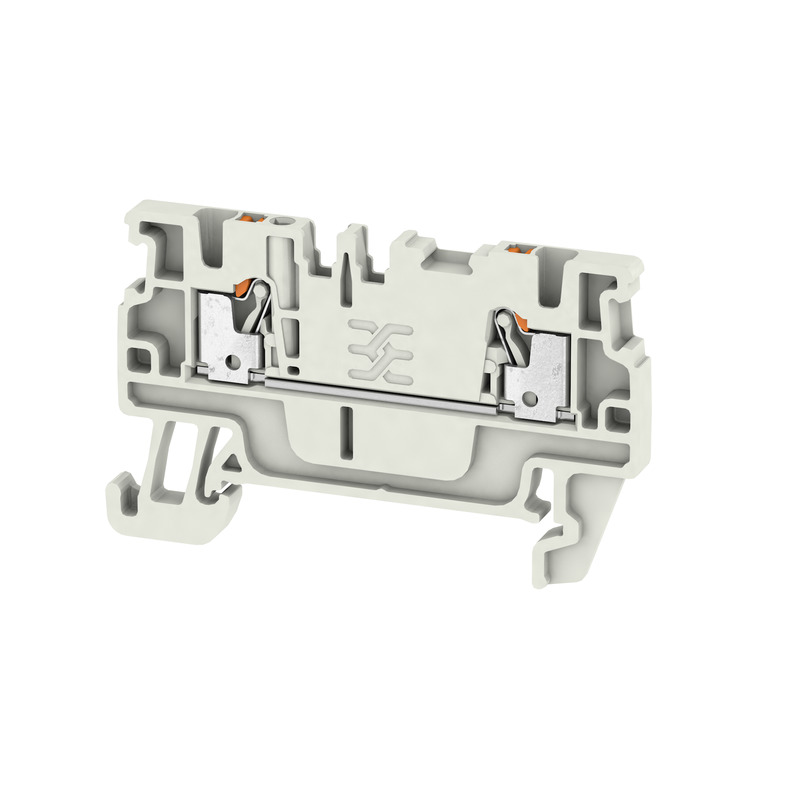

- Weidmuller, 2508220000, Terminal Block, 1-Tier, Series: A Series, 500 V, 17.5 A, 2 Pole, 26 to 14 AWG Wire, 8 mm Wire Strip Length, Blade Terminal, 0.4 x 2.0 mm Terminal, DIN Rail Mounting, Push-In Connection, -60 to 130 deg C, Wemid, Light Grey, 2.165 in H x 0.138 in W x 1.319 in D Dimensions
2508220000 Item Features
- To feed through power, signal, and data is the classical requirement in electrical engineering and panel building
- The insulating material, the connection system and the design of the terminal blocks are the differentiating features
- A feed-through terminal block is suitable for joining and/or connecting one or more conductors
- They could have one or more connection levels that are on the same potential or insulated against one another
2508220000 Standards
CCC-Ex Certified|CE Certified|CSA Certified|cURus Listed|DETNORVER|IECEXTUR|KEMAKEUR|KOSHAEX|MARITREG|TUEVNATEX|UKEXSKU #2380044Part Number #2508220000UNSPSC39121410UPC04050118525694
Image provided may only be a representation of final product and may include optional equipment
