2531310000
Weidmuller 2531310000 Terminal Blocks
Part Number # 2531310000
SKU # 2405925
$256.88 / 50Each
Typical price:$285.35 / Each
Weidmuller 2531310000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2531310000 |
| SKU #: | 2405925 |
| Amperage Rating: | 22 A |
| Dimensions: | 114.5 mm H x 5.1 mm W x 64 mm D |
| Series: | A |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Terminal Size: | 2.5 sq-mm |
| Terminal Type: | Feed-Through |
| Type: | Double-tier |
| Wire Size: | 28 to 12 AWG |
| Connection type: | Clamp |
| Country of origin: | RO |
| Material: | Wemid |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04050118541724 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$256.88 / 50Each
Typical price:$285.35 / Each
Quantity:
- Weidmuller, 2531310000, Terminal, Double-tier, Series: A, 800 V AC, 22 A, 28 to 12 AWG Wire, 10 mm Wire Strip Length, Feed-Through Terminal, 2.5 sq-mm Terminal, DIN Rail Mounting, Clamp Connection, -60 to 130 deg C, Wemid, Dark Beige, 114.5 mm H x 5.1 mm W x 64 mm D Dimensions
2531310000 Item Features
- To feed through power, signal, and data is the classical requirement in electrical engineering and panel building
- The insulating material, the connection system and the design of the terminal blocks are the differentiating features
- A feed-through terminal block is suitable for joining and/or connecting one or more conductors
- They could have one or more connection levels that are on the same potential or insulated against one another
2531310000 Standards
BURVER|CCC-Ex Certified|CE Certified|cURus Listed|DETNORVER|IECEXTUR|KEMAKEUR|KOSHAEX|MARITREG|TUEVNATEX|UKEXSKU #2405925Part Number #2531310000UNSPSC39121410UPC04050118541724

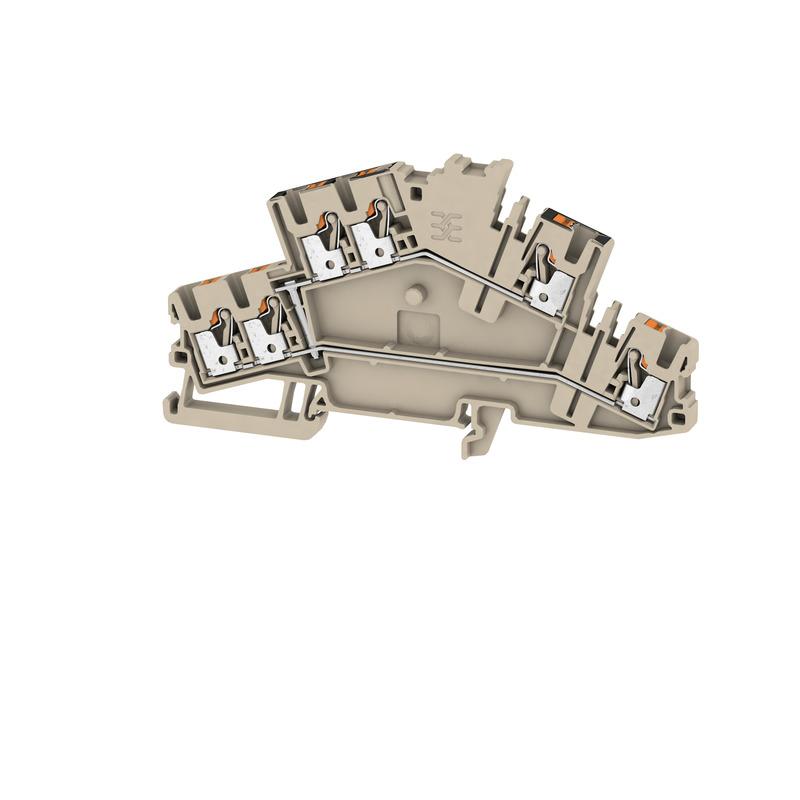

Image provided may only be a representation of final product and may include optional equipment
