Weidmuller 2561900000 Terminal Blocks
Part Number # 2561900000
SKU # 2401566
$352.00 / 50Each
Typical price:$390.95 / Each
Weidmuller 2561900000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2561900000 |
| SKU #: | 2401566 |
| Amperage Rating: | 6.3 A |
| Dimensions: | 62.5 mm H x 6.1 mm W x 75 mm D |
| Series: | W Series |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Terminal Size: | M3 |
| Torque Rating: | 0.5 to 0.6 N-m |
| Type: | 1-Tier Standard |
| Wire Size: | 26 to 10 AWG |
| Connection type: | Screw |
| Country of origin: | RO |
| Material: | Wemid |
| Mounting type: | Snap-Fit |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04050118570403 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$352.00 / 50Each
Typical price:$390.95 / Each
Quantity:

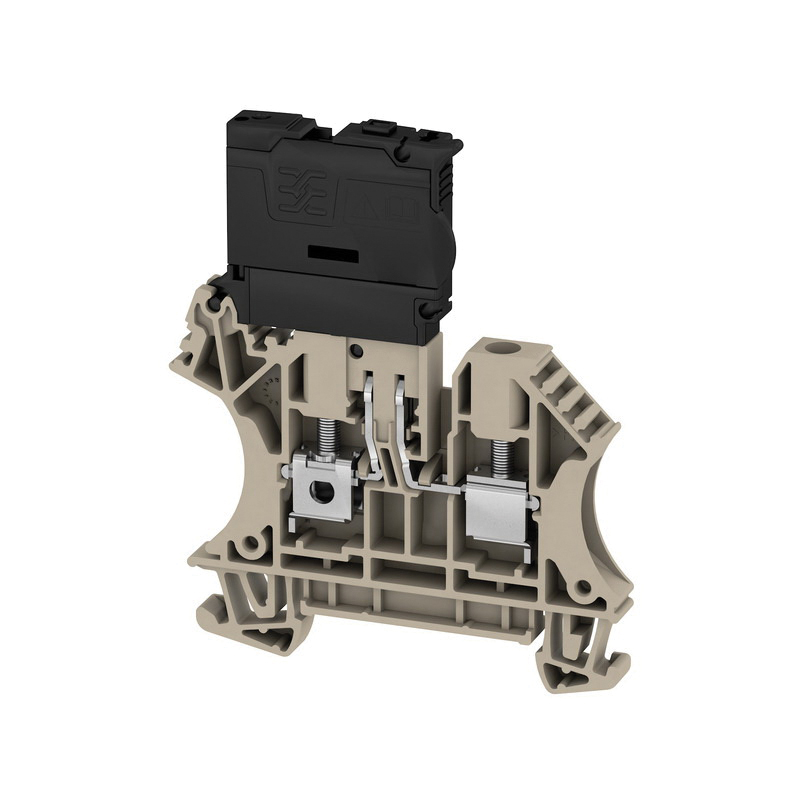

- Klippon Fuse Terminal Block, 1-Tier Standard, Series: W Series, 150 V, 6.3 A, 26 to 10 AWG Wire, 13 mm Wire Strip Length, M3 Terminal, 0.5 to 0.6 N-m Torque, Snap-Fit Mounting, Screw Connection, -60 to 130 deg C, Wemid, Dark Beige, 62.5 mm H x 6.1 mm W x 75 mm D Dimensions
2561900000 Includes
5 x 20 mm Cartridge Fuse2561900000 Item Features
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
- Overcurrent protection and disconnect in a single terminal block system
- Simple handling for easy removal of the fuse
- Contour identical to adjoining disconnect and feed through terminals of W Series, thus allowing easy potential distribution even in presence of pole skipping jumpering schemes
- Compact footprint (width and pitch)
- 1-piece and time effective multi-pole jumpering possibility, simultaneous connection of up to 16 commons (eg. negative for analog signals, positive for digital output from DCS) can be easily realized and safely guaranteed
- Visibility of the cross-connection (even when the fuse holder lever is closed) to ease cabinet commissioning and maintenance
- Integrated test point in the fuse lever, for time effective testing
2561900000 Standards
RoHS Compliant|CSA Certified|cULus Recognized|KEMA KEUR Approved|UL File No. E60693|UL 94 V-0 Flammability RatingSKU #2401566Part Number #2561900000UNSPSC39121410UPC04050118570403

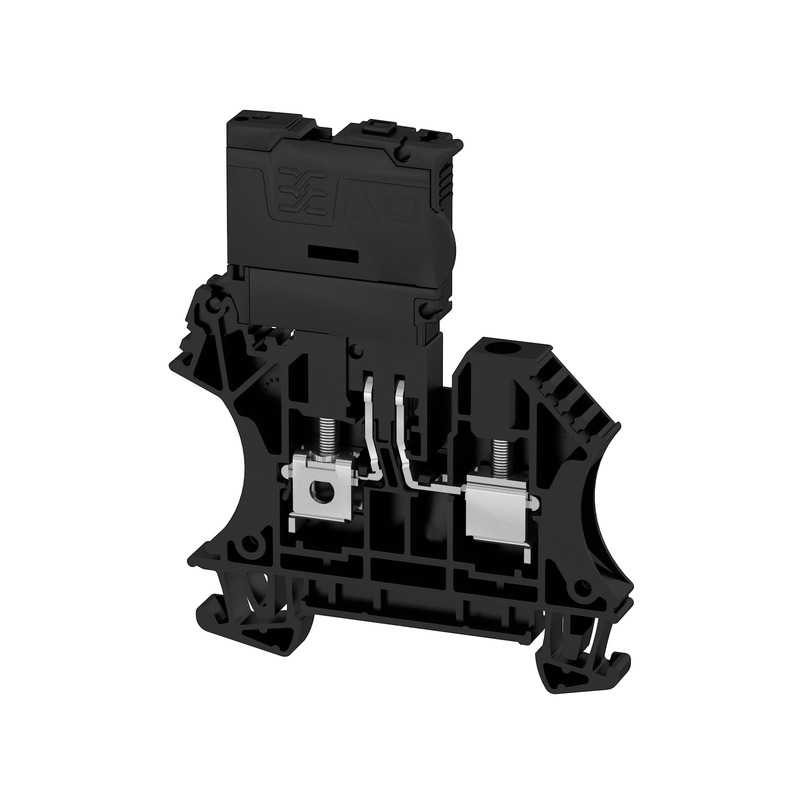

Image provided may only be a representation of final product and may include optional equipment
