Weidmuller 2561960000 Terminal Blocks
Part Number # 2561960000
SKU # 2405646
2561960000
Weidmuller 2561960000 Terminal Blocks
Part Number # 2561960000
SKU # 2405646
Weidmuller 2561960000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2561960000 |
| SKU #: | 2405646 |
| Dimensions: | 62.5 mm H x 6.1 mm W x 75 mm D |
| Series: | W Series |
| Temperature Rating (Degrees F): | -60 to 130 deg C |
| Terminal Size: | M3 |
| Type: | 1-Tier Standard |
| Material: | Wemid |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04050118570434 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Weidmuller 2561960000 Terminal Blocks
Brand: Weidmuller
Part Number: 2561960000
Additional Description: WEID-2561960000 WFS 4 100-250V FUSE TERMINAL, SCREW CONNECTION, FUSE ISOLATOR, SCREW CONNECTION, 4 MM, 250 V, 6.3 A, G-SI. 5 X 20, BLACK W-Series, Fuse terminal, Rated cross-section: 4 mm , Screw connection
Catalog Description: Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity. With removable carrier for a cartridge fuse.
2561960000 Includes
5 x 20 mm Cartridge Fuse2561960000 Item Features
- The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimizes operational safety
- Klippon connect provides a proven response to a range of different requirements
- Overcurrent protection and disconnect in a single terminal block system
- Simple handling for easy removal of the fuse
- Contour identical to adjoining disconnect and feed through terminals of W Series, thus allowing easy potential distribution even in presence of pole skipping jumpering schemes
- Compact footprint (width and pitch)
- 1-piece and time effective multi-pole jumpering possibility, simultaneous connection of up to 16 commons (eg. negative for analog signals, positive for digital output from DCS) can be easily realized and safely guaranteed
- Visibility of the cross-connection (even when the fuse holder lever is closed) to ease cabinet commissioning and maintenance
- Integrated test point in the fuse lever, for time effective testing
2561960000 Standards
RoHS Compliant|CSA Certified|cULus Recognized|KEMA KEUR Approved|UL File No. E60693|UL 94 V-0 Flammability RatingSKU #2405646Part Number #2561960000UNSPSC39121410UPC04050118570434

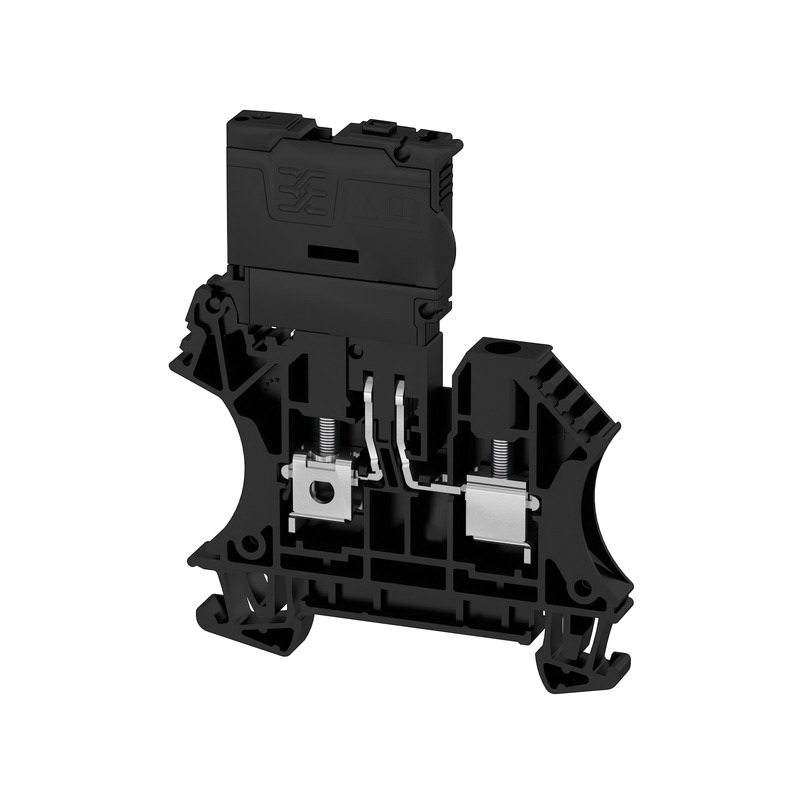

Image provided may only be a representation of final product and may include optional equipment
