Weidmuller 2562070000 Terminal Blocks
Part Number # 2562070000
SKU # 2405162
$528.50 / 50Each
Typical price:$587.05 / Each
Weidmuller 2562070000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2562070000 |
| SKU #: | 2405162 |
| Amperage Rating: | 20/32.5 A |
| Dimensions: | 21.6 mm H x 20.97 mm W x 11 mm D |
| Number of Poles: | 4 |
| Series: | LL Series |
| Spacing: | 5.08 mm |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Terminal Size: | M3 |
| Terminal Type: | THT Solder |
| Torque Rating: | 0.5 to 0.6 N-m |
| Wire Size: | 26 to 12 AWG |
| Connection type: | Clamping Yoke |
| Country of origin: | CN |
| Material: | Wemid |
| Mounting type: | Through-Hole |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04050118570540 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$528.50 / 50Each
Typical price:$587.05 / Each
Quantity:
- Weidmuller OMNIMATE Signal PCB Terminal Block, Series: LL Series, 300/500 V, 20/32.5 A, 4 Pole, 26 to 12 AWG Wire, 6 mm Wire Strip Length, THT Solder Terminal, M3 Terminal, 5.08 mm Spacing, 0.5 to 0.6 N-m Torque, Through-Hole Mounting, Clamping Yoke Connection, -50 to 120 deg C, Wemid, Orange, 21.6 mm H x 20.97 mm W x 11 mm D Dimensions
2562070000 Item Features
- This PCB terminal provides connections for 32 A and 6 sq-mm conductor cross-section with the proven clamping yoke connection, in 5 and 5.08 mm pitch
- 90 deg conductor outlet direction
- 500 V IEC, 300 V UL
- 32.5 A IEC, 20 A UL
- https://youtu.be/fLyyOl9RkAQ
2562070000 Standards
RoHS Compliant|UL File No. E60693 Recognized|UL 94 V-0 Flammability Rating|UL 1059SKU #2405162Part Number #2562070000UNSPSC39121410UPC04050118570540

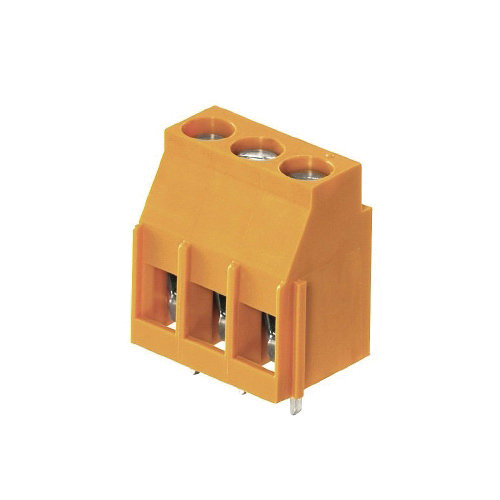

Image provided may only be a representation of final product and may include optional equipment
