2576120000

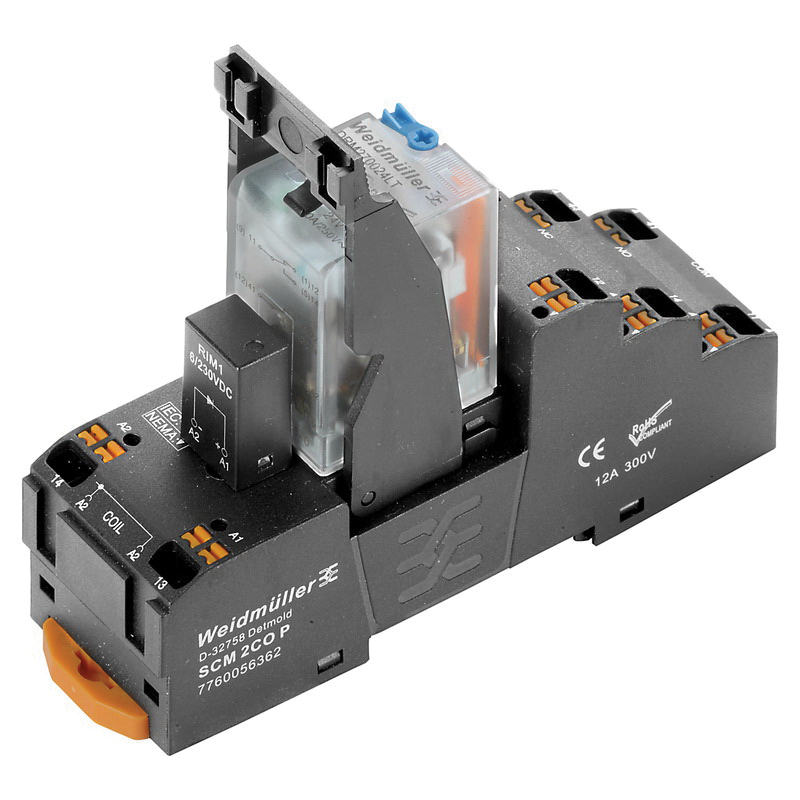

Weidmuller 2576120000 General Purpose Relay
Part Number # 2576120000
SKU # 2430942
$148.30 / 10Each
Typical price:$159.10 / Each
Weidmuller 2576120000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2576120000 |
| SKU #: | 2430942 |
| Amperage Rating: | 36.9 mA/10 A |
| Coil Voltage: | 24 V DC |
| Contact Form: | 2CO 2 Form C |
| Dimensions: | 101.8 mm H x 30.6 mm W x 42.7 mm D |
| Enclosure Type: | IP20 |
| Series: | D Series DRM |
| Temperature Rating (Degrees F): | -40 to 60 deg C |
| Terminal Type: | Push-In |
| Country of origin: | CN |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39122325 |
| UPC: | 04050118585872 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$148.30 / 10Each
Typical price:$159.10 / Each
Quantity:
- Weidmuller Relay Module Kit, Series: D Series DRM, 36.9 mA, 10 A, 0.9 W Power, 24 V DC Coil, 2CO 2 Form C Contact Form, DIN Rail Mounting, Push-In Terminal, IP20 Enclosure, -40 to 60 deg C, 101.8 mm H x 30.6 mm W x 42.7 mm D Dimensions
2576120000 Application
Industrial Applications2576120000 Includes
Relay, Base, Retaining Clip and Label2576120000 Item Features
- 100% function tested
- 100% control of the dielectric strength input output
- Bright status LED (AC coil: red/DC coil - green)
- 36.9 mA input rated current, 10 A output continuous current
2576120000 Standards
REACH 7439-92-1|cULus File No. E312083|cULus File No. E355547 RecognizedSKU #2430942Part Number #2576120000UNSPSC39122325UPC04050118585872
Image provided may only be a representation of final product and may include optional equipment
