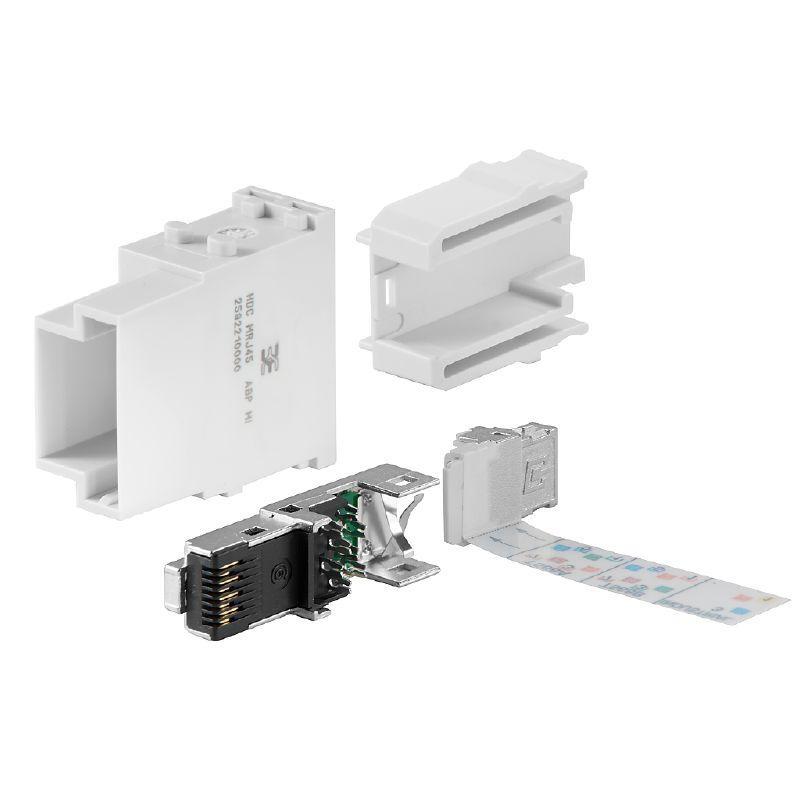

Weidmuller 2592210000 Bulkhead Pass Through Connector
Part Number # 2592210000
SKU # 2397799
2592210000
Weidmuller 2592210000 Bulkhead Pass Through Connector
Part Number # 2592210000
SKU # 2397799
$32.60 / Each
Typical price:$37.52 / Each
Weidmuller 2592210000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2592210000 |
| SKU #: | 2397799 |
| Dimensions: | 34 mm W x 14.5 mm D x 54.85 mm H |
| Number of Positions: | 8 |
| Series: | ModuPlug |
| Specifications: | 50 V Rated Voltage, 1 A Rated Current, 0.8 kV Rated Impulse Voltage, 3-Pollution severity, 10^12 Ohm Insulation strength, TIA-568A, EIA/TIA T568 B, PROFINET |
| Suitable For Use With: | RockStar Heavy Duty Gender Changer |
| Temperature Rating (Degrees F): | -40 to 70 deg C |
| Type: | Flexible Pin |
| Connection type: | RJ45 Male |
| Country of origin: | RO |
| Material: | Polycarbonate/Reinforced Fiberglass |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151901 |
| UPC: | 04050118602340 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$32.60 / Each
Typical price:$37.52 / Each
Quantity:
- Weidmuller Module Insert, Flexible Pin, Series: ModuPlug, 8 Positions, RJ45 Male Connection, For Use With: RockStar Heavy Duty Gender Changer, -40 to 70 deg C, Specifications: 50 V Rated Voltage, 1 A Rated Current, 0.8 kV Rated Impulse Voltage, 3-Pollution severity, 10^12 Ohm Insulation strength, TIA-568A, EIA/TIA T568 B, PROFINET, Polycarbonate/Reinforced Fiberglass, 34 mm W x 14.5 mm D x 54.85 mm H Dimensions
2592210000 Standards
REACH SVHC|DIN EN 61984|UL 94 Flammability Rating V-0SKU #2397799Part Number #2592210000UNSPSC32151901UPC04050118602340
Image provided may only be a representation of final product and may include optional equipment
