2618020000
Weidmuller 2618020000 General Purpose Relay
Part Number # 2618020000
SKU # 2431097
$131.10 / 10Each
Typical price:$140.60 / Each
Weidmuller 2618020000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2618020000 |
| SKU #: | 2431097 |
| Amperage Rating: | 6 A |
| Coil Voltage: | 24 V DC |
| Contact Form: | 1CO 1 Form C SPDT |
| Dimensions: | 6.4 mm W x 87.8 mm D x 89.4 mm H |
| Display Type: | Green LED |
| Enclosure Type: | IP20 |
| Series: | TERMSERIES |
| Temperature Rating (Degrees F): | -40 to 60 deg C |
| Terminal Type: | Push-In |
| Country of origin: | CN |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39122325 |
| UPC: | 04050118670813 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$131.10 / 10Each
Typical price:$140.60 / Each
Quantity:
- Klippon Electromechanical Relay Module, Series: TERMSERIES, 6 A, 1500 VA Resistive, 144 W at 24 V DC Power, 24 V DC Coil, 1CO 1 Form C SPDT Contact Form, DIN Rail Mounting, Push-In Terminal, Green LED Display, IP20 Enclosure, -40 to 60 deg C, 6.4 mm W x 87.8 mm D x 89.4 mm H Dimensions
2618020000 Application
Industrial Applications2618020000 Item Features
- Input voltages from 5 VDC to 230 VUC with colored marking - AC - red, DC - blue, UC - white
- Due to high quality design and no sharp edges no risk of injuries during installation
- Partition plates for optical separation and reinforcement of insulation
- Without test button, plating and mechanical switch position indicator
- https://youtu.be/CbUO3LxUzYc
2618020000 Standards
CE Certified|cULus File No.E141197|EAC Compliant|EN 50178/55011/61000-6-1, 2, 4|DNVGL TAA00001E5|RoHS Compliant|UL 94 Flammability Rating V-0SKU #2431097Part Number #2618020000UNSPSC39122325UPC04050118670813

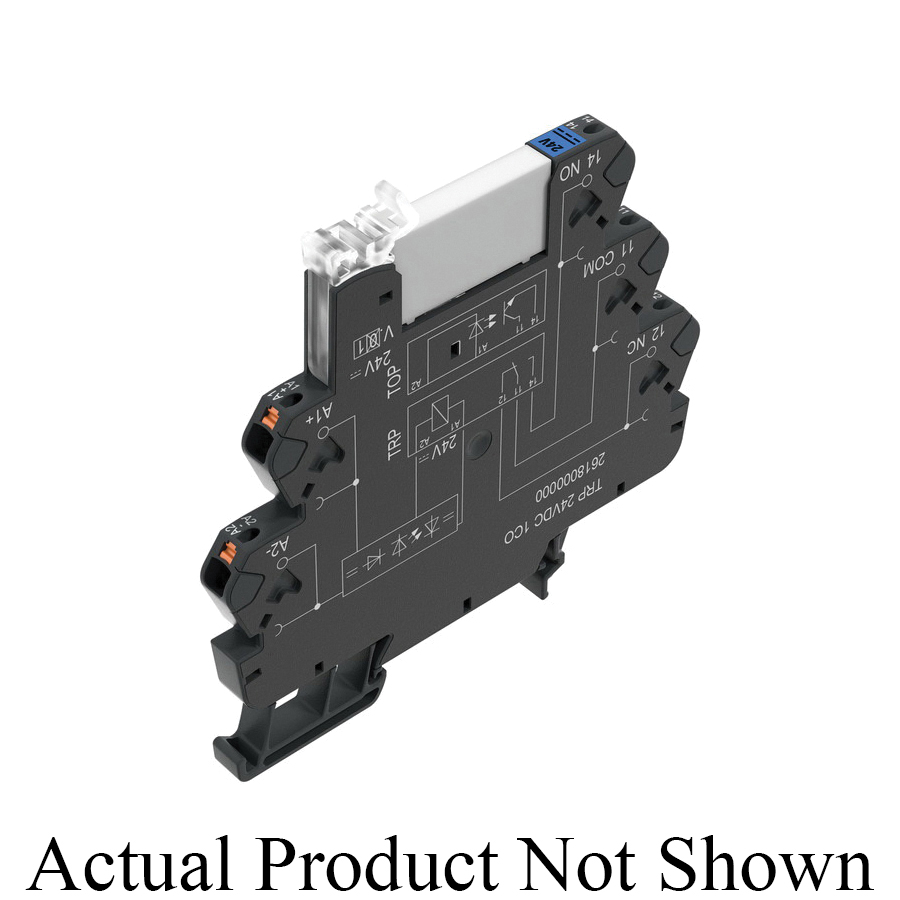

Image provided may only be a representation of final product and may include optional equipment
