Part Number # 2618400000
SKU # 2403213
Image Disclaimers Message
2618400000

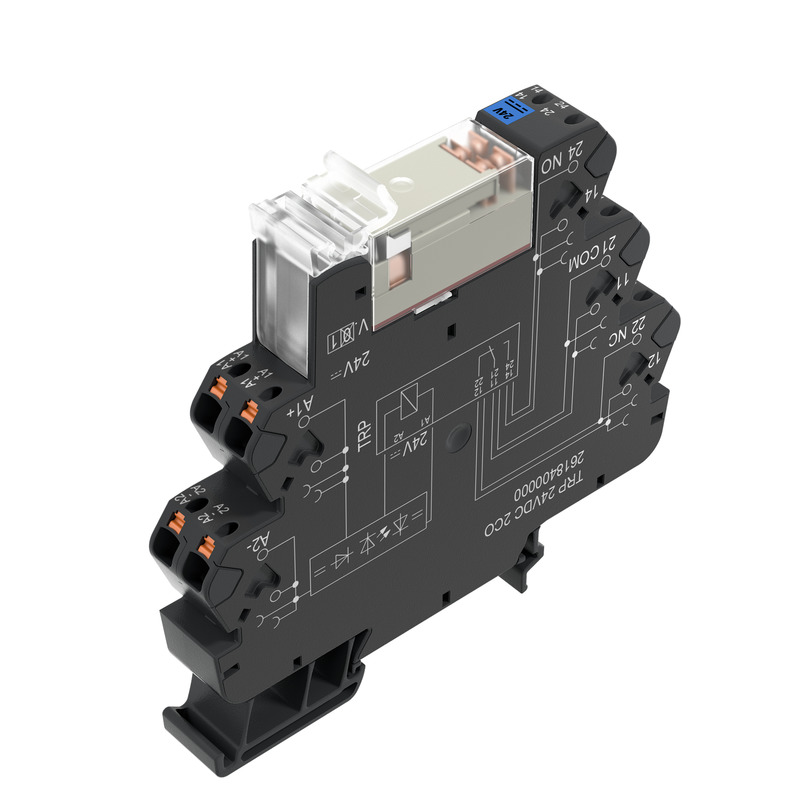

Weidmuller 2618400000 Klippon Electromechanical Relay Module
Part Number # 2618400000
SKU # 2403213
$160.80 / 10Each
Weidmuller 2618400000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2618400000 |
| SKU #: | 2403213 |
| Amperage Rating: | 8 A |
| Coil Voltage: | 24 VDC |
| Contact Form: | 2CO/DPDT |
| Dimensions: | 12.8 mm W x 87.8 mm D x 89.4 mm H |
| Display Type: | Green LED |
| Enclosure Type: | IP20 |
| Series: | TERMSERIES |
| Temperature Rating (Degrees F): | -40 to 60 deg C |
| Terminal Type: | Push-In |
| Country of origin: | CN |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39122325 |
| UPC: | 04050118670431 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$160.80 / 10Each
Quantity:
Weidmuller 2618400000 Klippon Electromechanical Relay Module
Brand: Weidmuller
Part Number: 2618400000
Additional Description: WEID-2618400000 TRP 24VDC 2CO RELAY MODULE, 24 V DC ±20 %, GREEN LED, FREE-WHEELING DIODE, REVERSE POLARITY PROTECTION, 2 CO CONTACT (AGNI) , 250 V AC, 8 A, PUSH IN, TEST BUTTON AVAILABLE: NO
Catalog Description: Assembly of plug-in relay and plug-in socket. Control circuit and load circuit are electrically isolated.
2618400000 Application
Industrial Applications2618400000 Item Features
- Input voltages from 5 VDC to 230 VUC with colored marking - AC - red, DC - blue, UC - white
- Due to high quality design and no sharp edges no risk of injuries during installation
- Partition plates for optical separation and reinforcement of insulation
- Without test button, plating and mechanical switch position indicator
- https://youtu.be/CbUO3LxUzYc
2618400000 Standards
CE Certified|cULus File No.E141197|EAC Compliant|EN 50178/55011/61000-6-1, 2, 4|DNVGL TAA00001E5|RoHS Compliant|UL 94 Flammability Rating V-0SKU #2403213Part Number #2618400000UNSPSC39122325UPC04050118670431
