2681680000

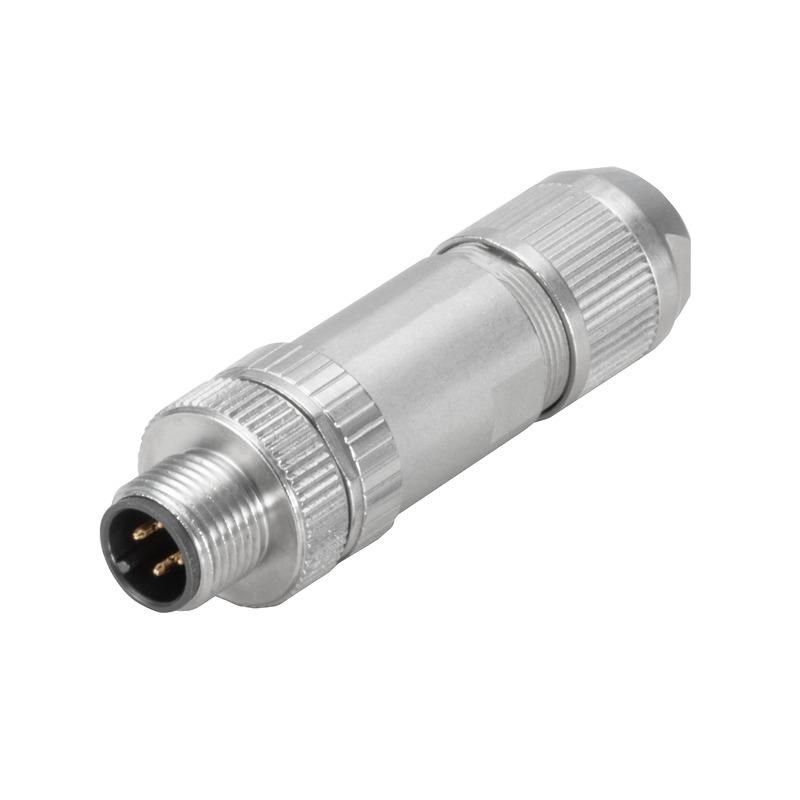

Weidmuller 2681680000 Control System Cordset
Part Number # 2681680000
SKU # 2425735
$18.56 / Each
Typical price:$19.58 / Each
Weidmuller 2681680000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2681680000 |
| SKU #: | 2425735 |
| Connector Size: | M12 |
| Connector Type: | Pin/Push-In |
| Number of Contacts: | 4 |
| Shell Size: | M12 x 4 |
| Specifications: | 4-Pole, 4 A, >/=100 Plugging Cycles, IP67 |
| Temperature Rating (Degrees F): | -40 to 85 deg C |
| Type: | Straight |
| Wire Size: | 4 to 8 mm |
| Contact material: | CuZn |
| Country of origin: | DE |
| Housing material: | Nickel Plated CuZn |
| Insulation resistance: | >=100 MOhm |
| Mounting type: | Rear Panel |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151902 |
| UPC: | 04050118759853 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$18.56 / Each
Typical price:$19.58 / Each
Quantity:
- Weidmuller, 2681680000, PCB Connector, Straight, Pin/Push-In Connector, M12 Connector, 4 Contacts, M12 x 4 Shell, 4 to 8 mm Wire, 60 V AC, Rear Panel Mounting, >=100 MOhm Insulation Resistance, Nickel Plated CuZn Housing Material, -40 to 85 deg C, Specifications: 4-Pole, 4 A, >/=100 Plugging Cycles, IP67
2681680000 Item Features
- Individual cable lengths are often required nowadays
- In order to meet these demands, Weidmuller offers a wide range of plug-in connectors for custom assembly
- Male plugs and female socket for customisable assembly for M8, M12, M16 and 7/8 in connections which are highly robust and ideally suited to machine engineering, for instance
- The M12 plug-in connectors offer a choice of 5 different connection systems
2681680000 Standards
RoHS Compliant|cULus ListedSKU #2425735Part Number #2681680000UNSPSC32151902UPC04050118759853
Image provided may only be a representation of final product and may include optional equipment
