Brand: Weidmuller

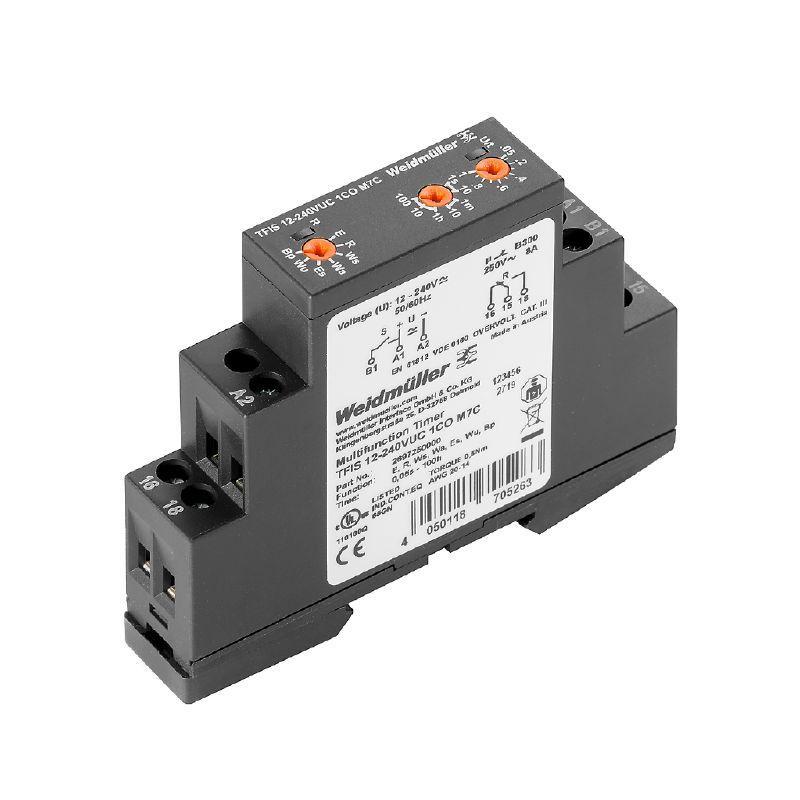

Weidmuller 2697250000 Klippon Timing Relay
Image Disclaimers Message
Brand: Weidmuller
Weidmuller 2697250000 Klippon Timing Relay
Brand: Weidmuller
Weidmuller 2697250000 Klippon Timing Relay
Part #:2697250000
SKU #: 2416068
$40.48/EA
Key Features
Part #:2697250000
SKU #: 2416068
Brand: Weidmuller
Amperage Rating: 8 A
Coil Voltage: 12 to 240 VAC/VDC
Contact Form: 1CO/SPDT
Dimensions: 17.5 mm W x 60 mm D x 87 mm H
Display Type: Green/Yellow LED
$40.48/EA
- Without test button and mechanical switch position indicator
Specifications
Brand: Weidmuller
Amperage Rating: 8 A
Coil Voltage: 12 to 240 VAC/VDC
Contact Form: 1CO/SPDT
Dimensions: 17.5 mm W x 60 mm D x 87 mm H
Display Type: Green/Yellow LED
Electrical Connections: Screw
Enclosure Type: IP20
Operation Mode: 7-Function
Series: TFI
Temperature Rating (Degrees F): -25 to 55 deg C
Time Setting: 0.05 s to 100 hr
Mounting type: DIN Rail
UNSPSC: 39122325
UPC: 04050118705263
Weidmuller 2697250000 Klippon Timing Relay
Additional Description: WEID-2697250000 TFIS 12-240VUC 1CO M7C TIMING RELAY, WITH SEPARATE CONTROL INPUT, 12...240 V UC -10 % / +10 %, 1 CO CONTACT (AGNI) , 8 A, SCREW CONNECTION
Catalog Description: Timing relay for processing control signals. Short pulses are extended in time and thus reliably detected by the downstream control modules.
