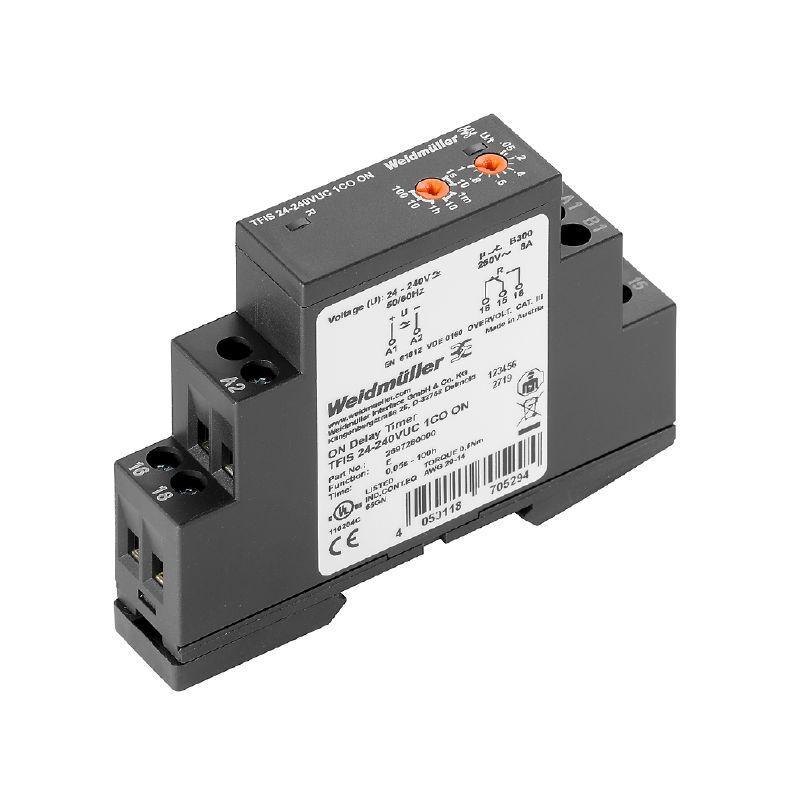

Weidmuller 2697280000 General Purpose Relay
Part Number # 2697280000
SKU # 2405796
$45.08 / Each
Weidmuller 2697280000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2697280000 |
| SKU #: | 2405796 |
| Amperage Rating: | 8 A |
| Coil Voltage: | 24 to 240 V AC/DC |
| Contact Form: | 1CO 1 Form C SPDT |
| Dimensions: | 17.5 mm W x 60 mm D x 87 mm H |
| Display Type: | Green/Yellow LED |
| Electrical Connections: | Screw |
| Enclosure Type: | IP20 |
| Operation Mode: | On Delay |
| Series: | TFI |
| Temperature Rating (Degrees F): | -25 to 55 deg C |
| Time Setting: | 0.05 s to 100 hr |
| Country of origin: | AT |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39122325 |
| UPC: | 04050118705294 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$45.08 / Each
Quantity:
- Klippon Timing Relay, Series: TFI, Operation Mode: ON Delay, 8 A, 1CO 1 Form C SPDT Contact Form, 0.05 s to 100 hr Time Setting, 24 to 240 V AC/DC Coil, 100 ms Pulse, Green/Yellow LED Display, Screw Electrical Connections, IP20 Enclosure, -25 to 55 deg C, DIN Rail Mounting, 17.5 mm W x 60 mm D x 87 mm H Dimensions
2697280000 Application
Industrial, Plant and Building Automation Applications2697280000 Item Features
- Without separate control input, test button and mechanical switch position indicator
2697280000 Standards
CE Certified|cULus File No.E360862|RoHS CompliantSKU #2405796Part Number #2697280000UNSPSC39122325UPC04050118705294
Image provided may only be a representation of final product and may include optional equipment
