2730780000

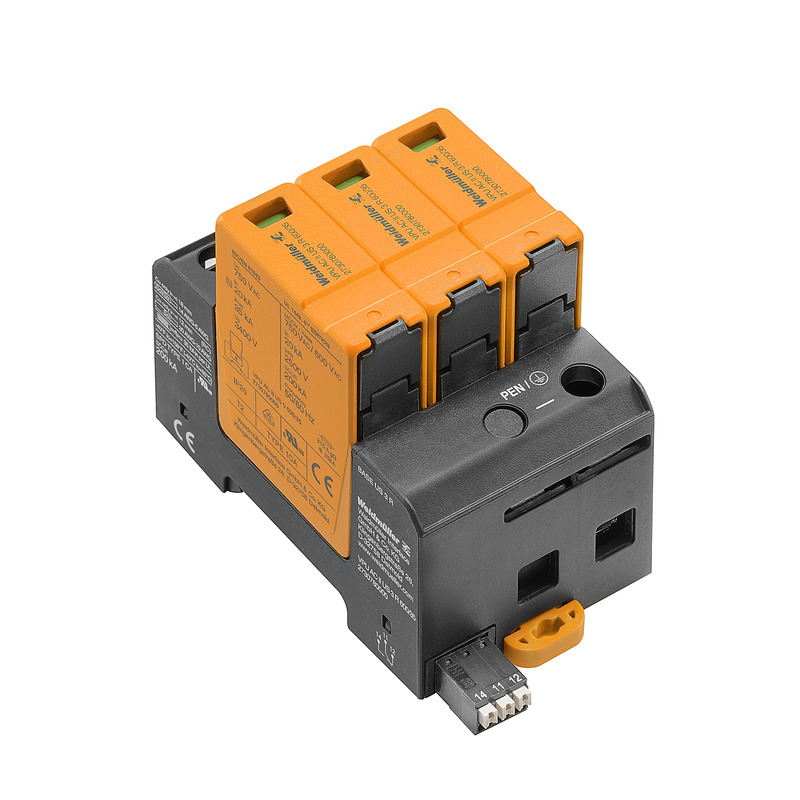

Weidmuller 2730780000 Surge Arrestor
Part Number # 2730780000
SKU # 2389181
$233.11 / Each
Typical price:$258.93 / Each
Weidmuller 2730780000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2730780000 |
| SKU #: | 2389181 |
| Dimensions: | 2.126 in W x 2.677 in D x 4.528 in H |
| Series: | VPU AC II Series |
| Type: | Type II Low Voltage |
| UNSPSC: | 39121634 |
| UPC: | 04050118807325 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$233.11 / Each
Typical price:$258.93 / Each
Quantity:
- Weidmuller Surge Voltage Arrester, Type II Low Voltage, Series: VPU AC II Series, 600 V AC Electrical Rating, 3 Poles, 50 kA Short Circuit, 20 to 35 kA Nominal Discharge, <=25 ns Response, Environmental Conditions: -40 to 85 deg C Operating/Storage Temperature, 5 to 95% Relative Humidity, IP20 Enclosure, DIN Rail Mounting, Screw Terminal, 2.126 in W x 2.677 in D x 4.528 in H Dimensions, Black/Orange
2730780000 Item Features
- Compact SPD to install in application by NFPA 79
- No additional overcurrent protection devices needed
- Short circuit current rating (SCCR) up to 200 kA
2730780000 Standards
RoHS Compliant|VDE Approved|cULus Listed|IEC/EN 61643-11|UL File No.14494|NFPA 79|UL 94 Flammability Rating V-0SKU #2389181Part Number #2730780000UNSPSC39121634UPC04050118807325
Image provided may only be a representation of final product and may include optional equipment
