4061590000
Weidmuller 4061590000 General Purpose Relay
Part Number # 4061590000
SKU # 2429655
$229.60 / 20Each
Weidmuller 4061590000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 4061590000 |
| SKU #: | 2429655 |
| Amperage Rating: | 7 mA/6 A |
| Coil Voltage: | 24 V DC |
| Contact Form: | 1 Form C SPDT |
| Contact Rating: | 6 A |
| Dimensions: | 1.102 in H x 0.197 in W x 0.591 in D |
| Enclosure Type: | IP67 |
| Frequency Rating: | 0.1 Hz |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -40 to 85 deg C |
| Terminal Type: | Plug-In |
| Country of origin: | CZ |
| Mounting type: | Through Hole |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39122325 |
| UPC: | 04032248252282 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$229.60 / 20Each
Quantity:
- Weidmuller General Purpose Relay, 7 mA/6 A, 170 mW, 0.1 Hz, 24 V DC Coil, 1 Form C SPDT, 6 A Contact, 1 Poles, Through Hole Mount, Plug-In Terminal, IP67, -40 to 85 deg C, 1.102 in H x 0.197 in W x 0.591 in D
4061590000 Item Features
- 1 CO contact (AgNi 5 um AU)
- TERMSERIES accessories include spare relay, base, partition plates, cross-connections, power-feed modules
- TERMSERIES relay modules from 6 mm width
- Plug-in connection
- 16.8/2.4 VDC pull-in/drop-out voltage
- 3388 Ohm +/- 10% coil-resistance
- 250 VAC rated switching voltage
- 6 A inrush current
- 1500 VA AC switching capacity (resistive), maximum
- 144 W at 24 VDC switching capacity (resistive), maximum
- <=8 ms switch-on delay, <4 ms switch-off delay, 1 mA at 1 VAC minimum switching power
- 5 x 10^6 switching cycles mechanical service life
- UL 94 flammability rating V-0
- >=5.5 mm creepage and clearance distance input output
- 4 kVeff/1min dielectric strength input output, 1 kVeff/1 min dielectric strength of open contact
- IP67 protection degree
- 6 kV (1.2/50 us) impulse withstand voltage
- -40 to 85 deg C storage temperature
- 7 mA DC Current, 6 A continuous current
- RSS112024 type
4061590000 Standards
cURus/UL File No. E224238, UL 508 Listed|CSA 249409-2426937, VDE|IEC 61810-1 Certified|EAC|RoHS CompliantSKU #2429655Part Number #4061590000UNSPSC39122325UPC04032248252282

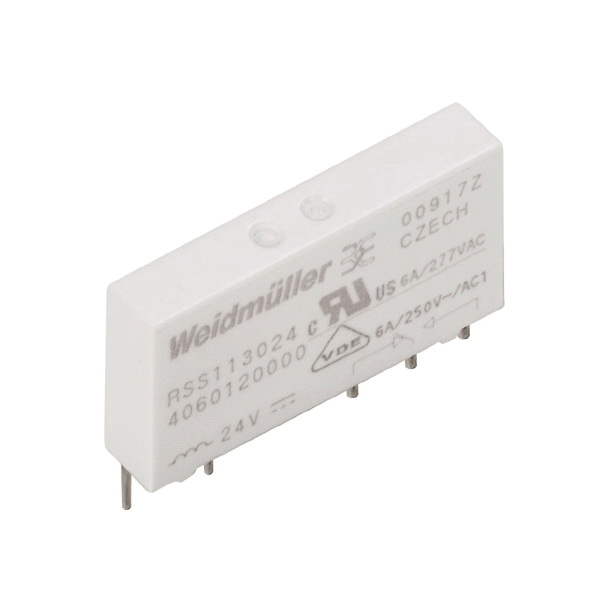

Image provided may only be a representation of final product and may include optional equipment
