7760054118

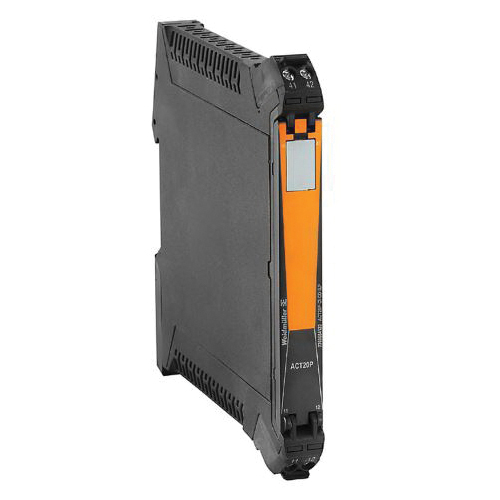

Weidmuller 7760054118 Signal Conditioners
Part Number # 7760054118
SKU # 2414276
$205.72 / Each
Weidmuller 7760054118 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 7760054118 |
| SKU #: | 2414276 |
| Dimensions: | 117.2 mm H x 12.5 mm W x 114 mm D |
| Response Time: | <1 ms |
| Specifications: | 1-Input, 1-Output, 26 to 12 AWG Wire Connection, 5 to 95%, No Condensation Humidity |
| Temperature Rating (Degrees F): | -20 to 60 deg C |
| Connection type: | Screw |
| Country of origin: | CN |
| Input current: | 0 to 20 mA |
| Output current: | 4 to 20 mA |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121020 |
| UPC: | 06944169656583 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$205.72 / Each
Quantity:
- Weidmuller Signal Conditioner, 0 to 20 mA Input Current, 4 to 20 mA Output Current, Screw Connection, -20 to 60 deg C, <1 ms Response, <0.1% Accuracy, Specifications: 1-Input, 1-Output, 26 to 12 AWG Wire Connection, 5 to 95%, No Condensation Humidity, 117.2 mm H x 12.5 mm W x 114 mm D Dimensions
7760054118 Item Features
- Precise and highly functional signal converters
- Release levers simplify handling
- 2-way galvanic isolation between input and output
7760054118 Standards
cULus Listed|ATEX Compliant|EAC Approved|IEC EX Certified|REACH SVHC Lead 7439-92-1SKU #2414276Part Number #7760054118UNSPSC39121020UPC06944169656583
